Home >> Mercury >> 1993 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Fuse Circuits >> Fuse 16 >> Part 3 of 4

Part 3 of 4

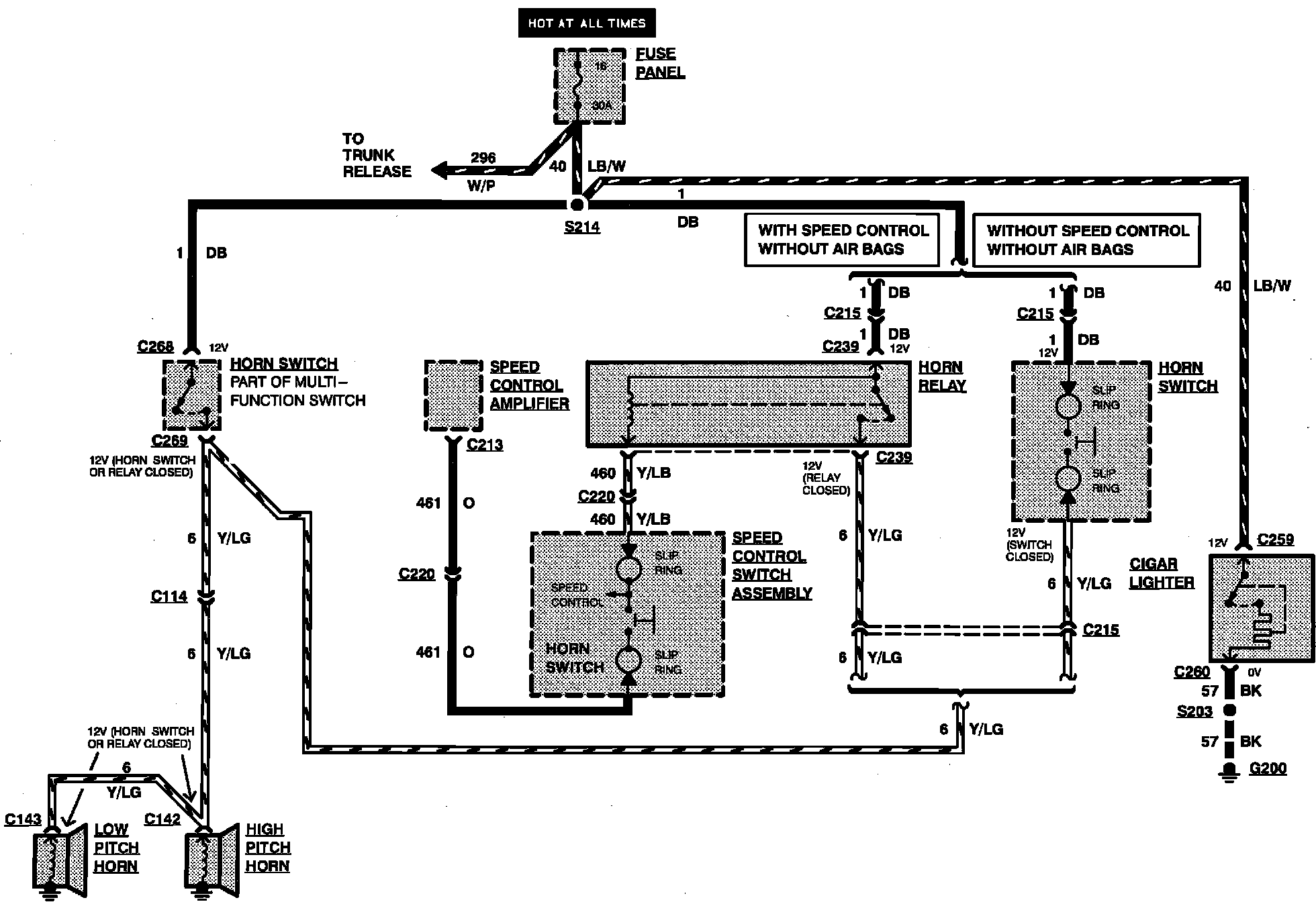

Horn/Cigar Lighter:
