Home >> Mercury >> 1993 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection >> Interval Wipers

Interval Wipers

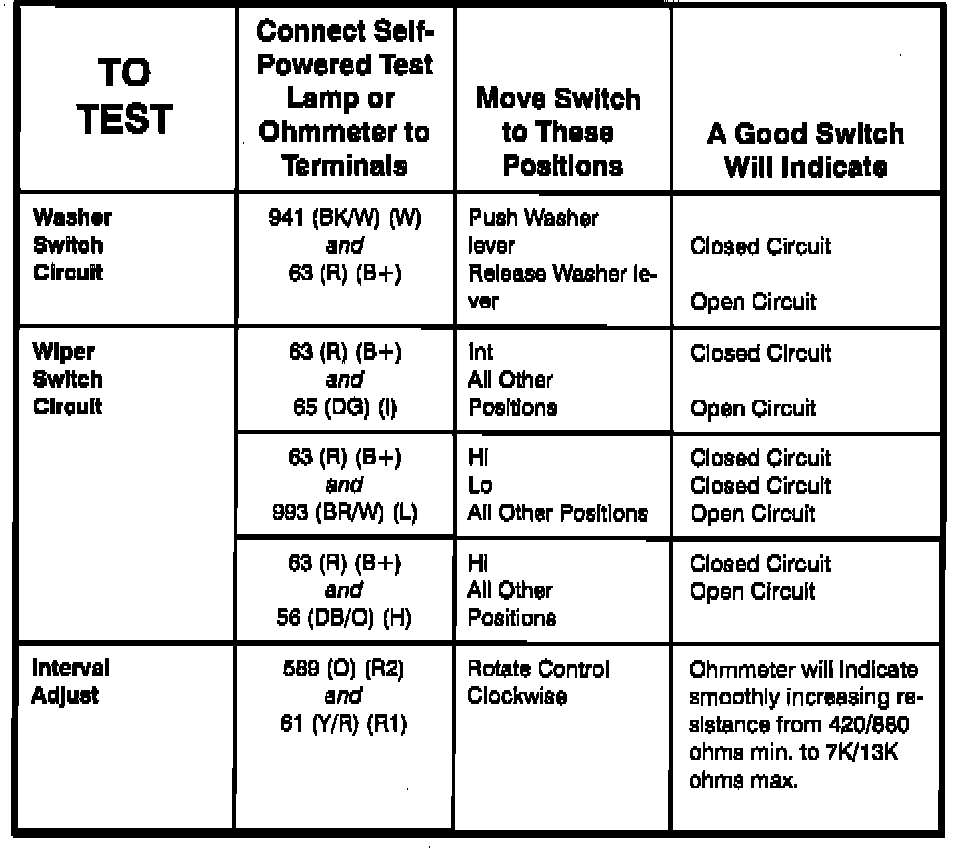

Component Testing Procedure:




COMPONENT TESTING PROCEDURE


Terminal Locations:




TERMINAL IDENTIFICATION

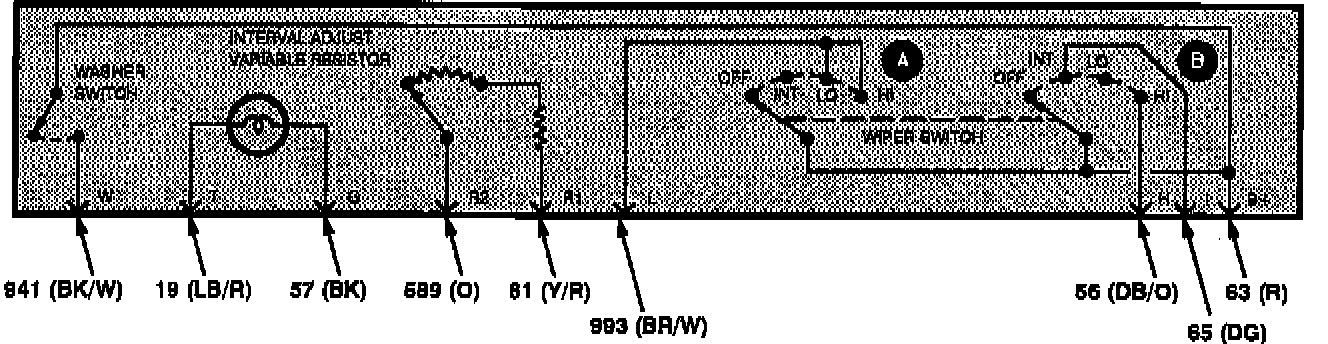

Schematic:




SCHEMATIC
