4-Door

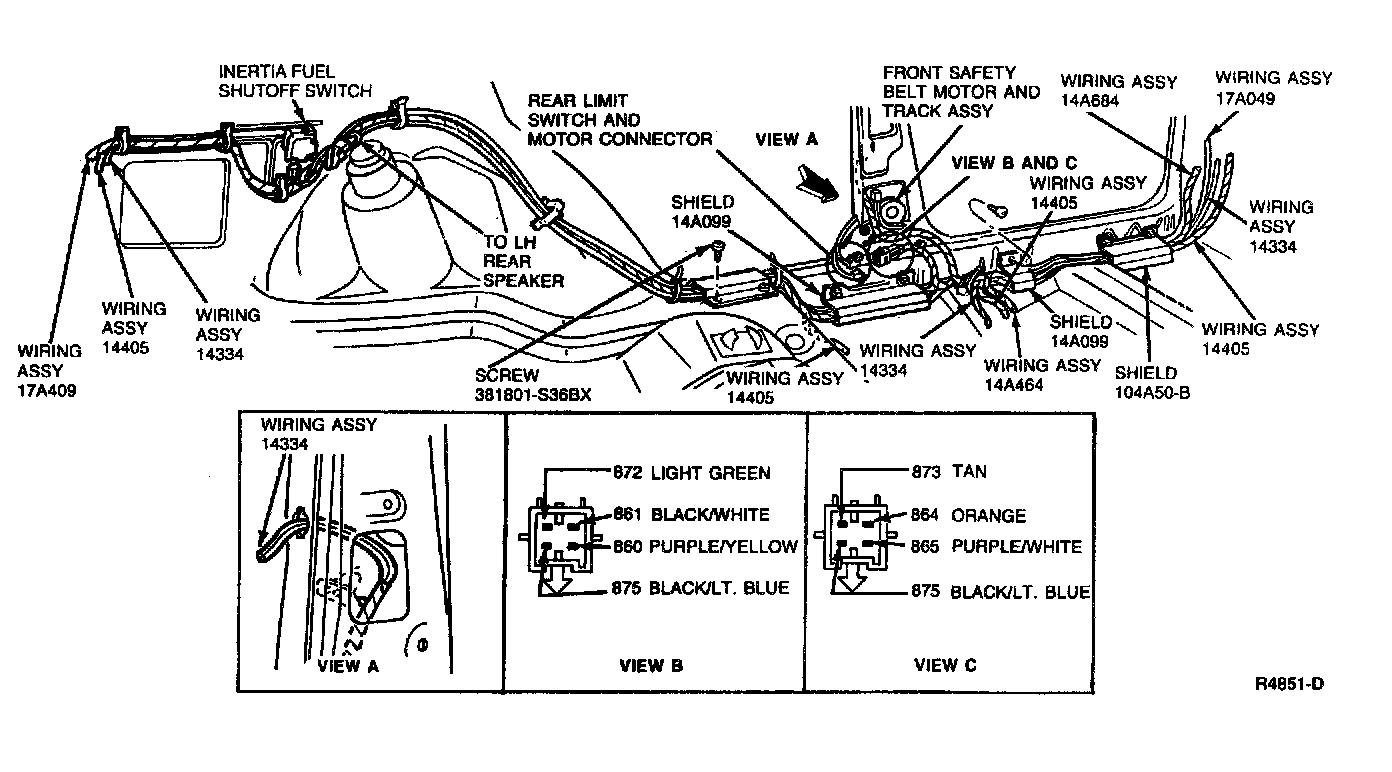

1. Disconnect the limit switch wiring connector from the body wiring connector. The A-pillar limit switch connector is in the lower cowl side trim panel area. The B-pillar limit switch connector is in the lower B-pillar area near the motor.
2. Connect a volt-ohmmeter to the connector terminals of the limit switch.

NOTE: There should be no break in continuity during this procedure. If there is a break in continuity, re-test and verify break in continuity. If again, there is a break in continuity, replace the applicable switch.

3. Push the switch plunger in slightly and very gently wiggle it side-to-side in a clockwise motion.
