Home >> Mercury >> 1993 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> Secondary Air Injection Functional Diagnosis >> AIR39 - Check Pair Valve Operation For Closed

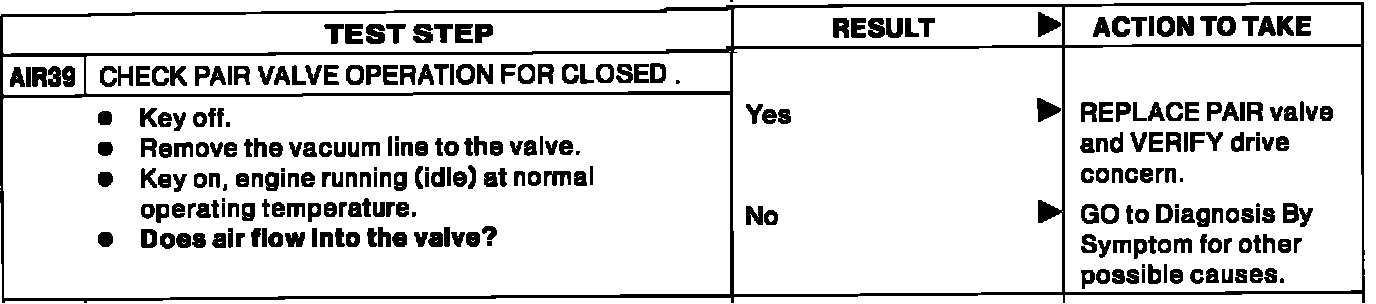

AIR39 - Check Pair Valve Operation For Closed

AIR39 - Check PAIR Valve Operation For Closed:
