Home >> Mercury >> 1993 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Constant Control Relay Module (CCRM) >> X25 - FC/LFC Circuit Fault Isolation Check

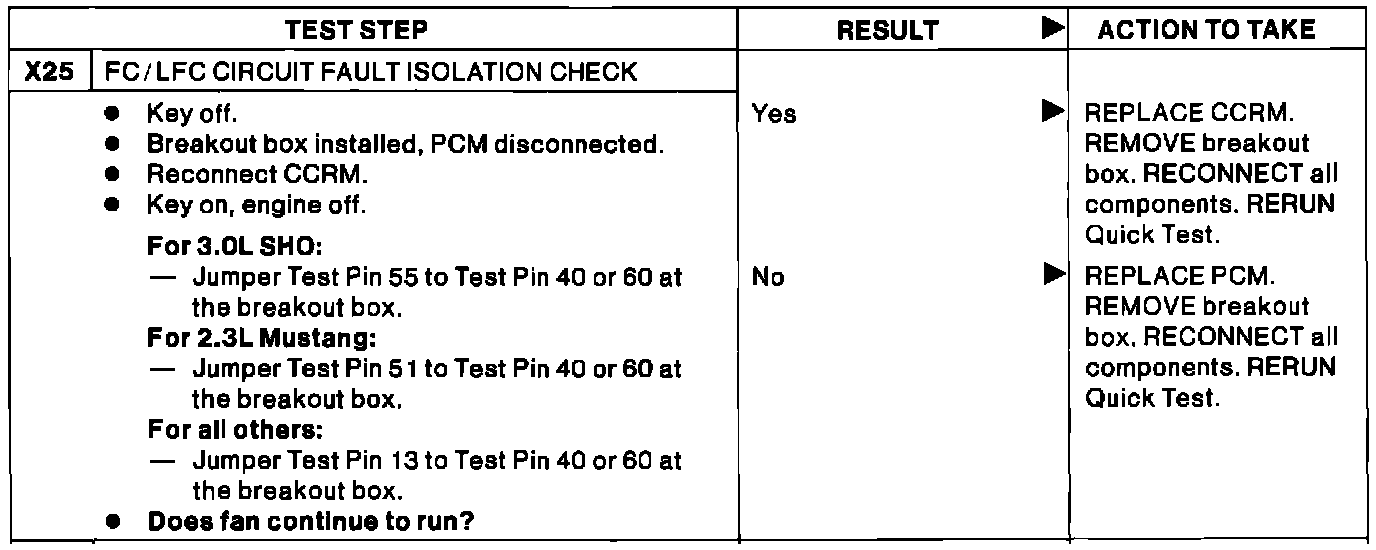

X25 - FC/LFC Circuit Fault Isolation Check

Pinpoint Test X25:
