Headlamp Dimmer Switch: Testing and Inspection

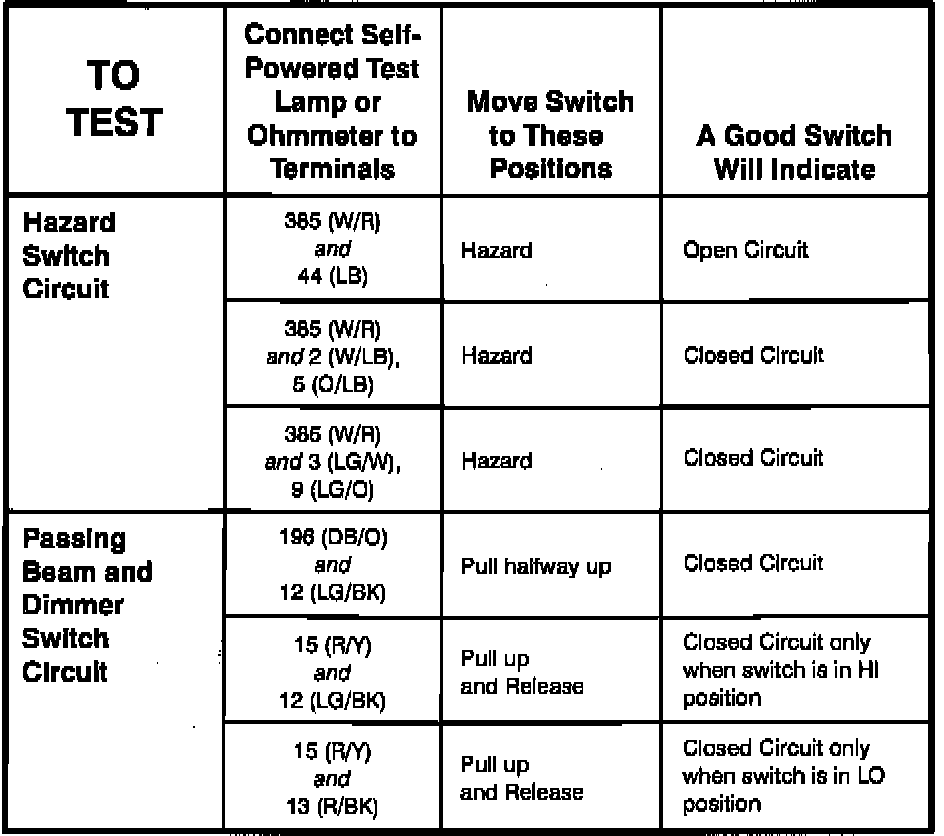

Component Testing Procedure:

COMPONENT TESTING PROCEDURE

Terminal Locations:

TERMINAL IDENTIFICATION

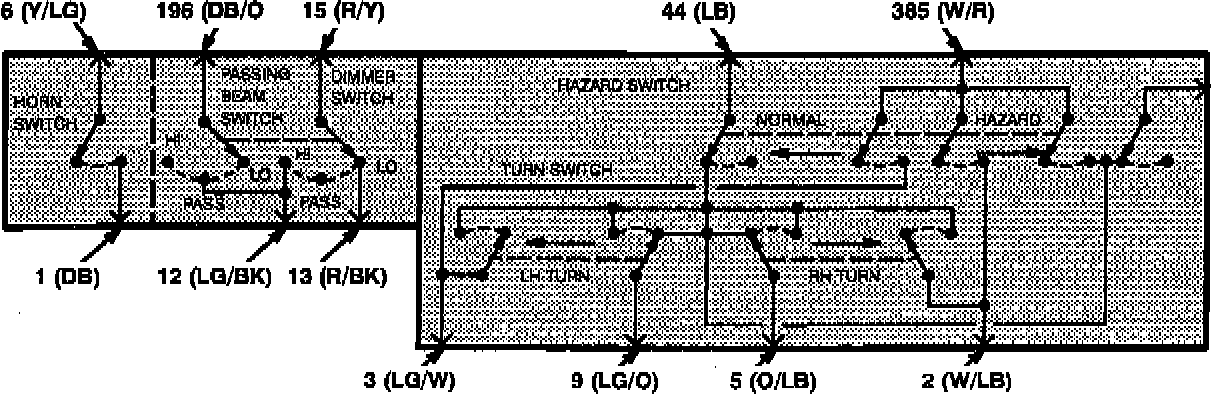

Schematic:

SCHEMATIC
