Home >> Mercury >> 1993 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> H1 - H3

H1 - H3

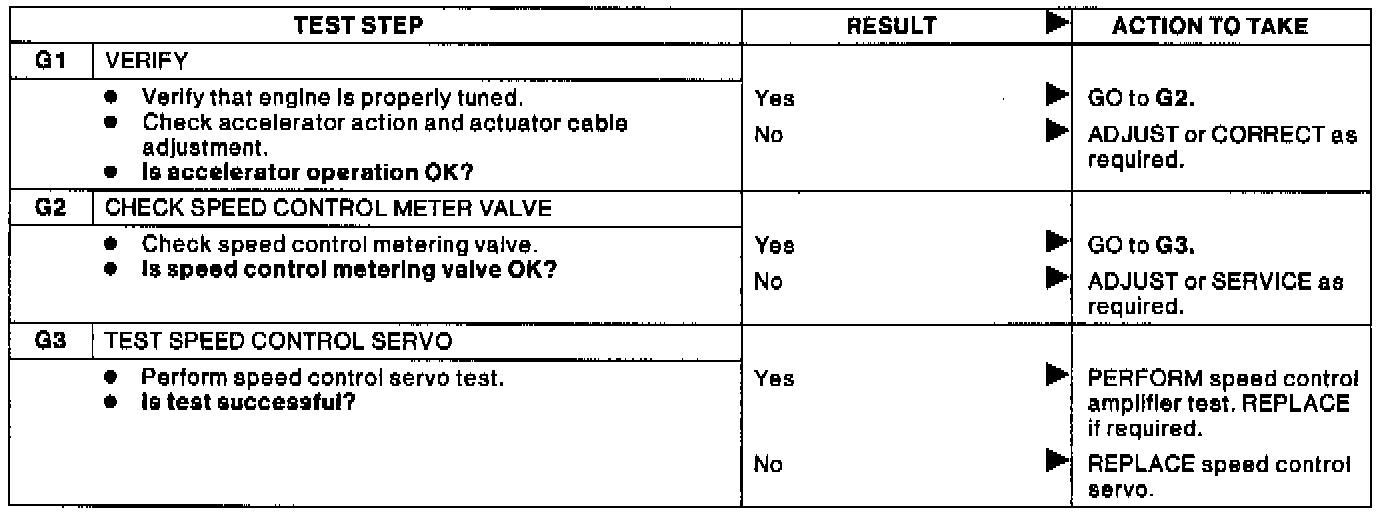

Fig. 17 Pinpoint Test G, Speed Gradually Increases Or Decreases After Speed Is Set. Mustang, Tempo/Topaz:
