With Armrest

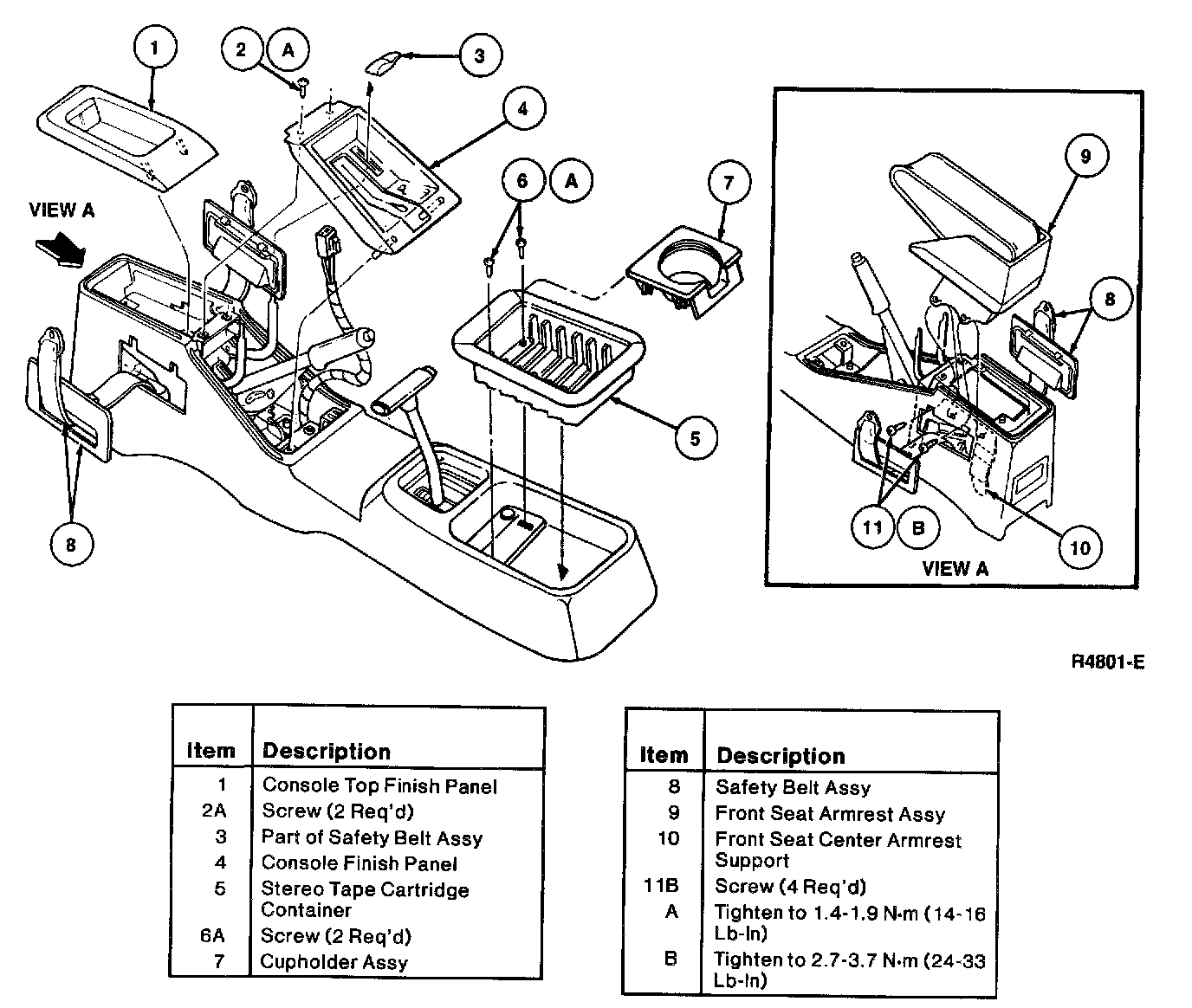

Removal and Installation
1. Cycle shoulder belts to A-pillar position. Remove shoulder belt anchor plug buttons and bolts. Allow belts to retract into console.
2. Remove four armrest-to-rear support retaining screws, two on each side. Remove armrest (snap off RH and LH shoulder belt bezels to gain access to the four armrest retaining screws).
3. Remove one console-to-rear support retaining screw.
4. Using a small screwdriver, relieve pressure of retaining clip on underside of both emergency release lever handles and pull off.
5. Remove two finish panel-to-console retaining screws. Lift panel out of console.
6. Remove two console-to-center support retaining screws.
7. Remove drop-in cupholder and two tray attaching screws. Lift out tray to gain access of the two console retaining screws. Remove two console to front support retaining screws.
8. Lift console up and feed the shoulder belts and bezels through opening in console and remove console.
9. To install, reverse Removal procedure.
