Home >> Mercury >> 1993 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Constant Control Relay Module (CCRM) >> X62 - Isolate Fault to PCM or CCRM

X62 - Isolate Fault to PCM or CCRM

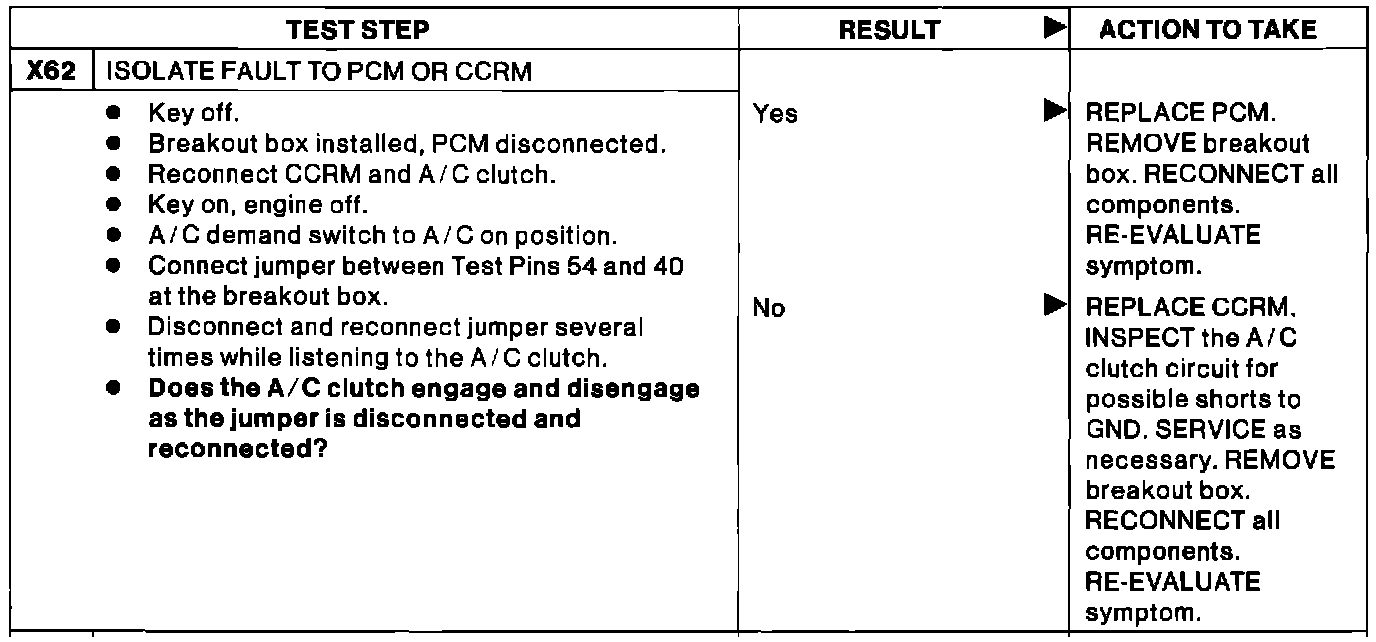

Pinpoint Test X62:
