X - Constant Control Relay Module (CCRM)
>>
X60 - No A/C Cutoff: Check WAC Circuit Continuity
X60 - No A/C Cutoff: Check WAC Circuit Continuity

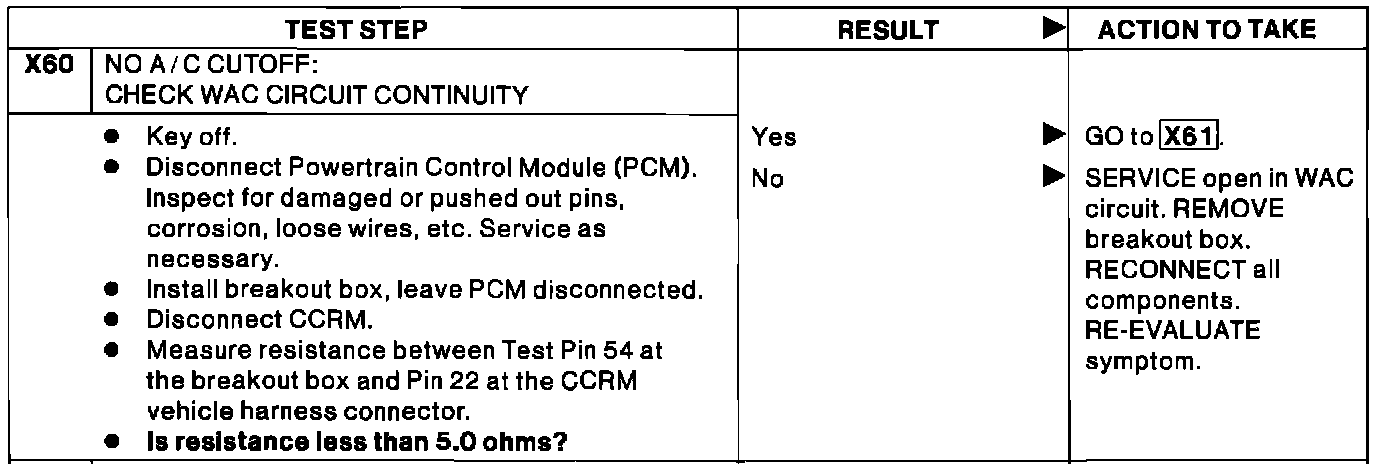

Pinpoint Test X60:
