Home >> Mercury >> 1993 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Constant Control Relay Module (CCRM) >> X30 - Cooling Fan Always On: Disconnect CCRM and Check Fan

X30 - Cooling Fan Always On: Disconnect CCRM and Check Fan

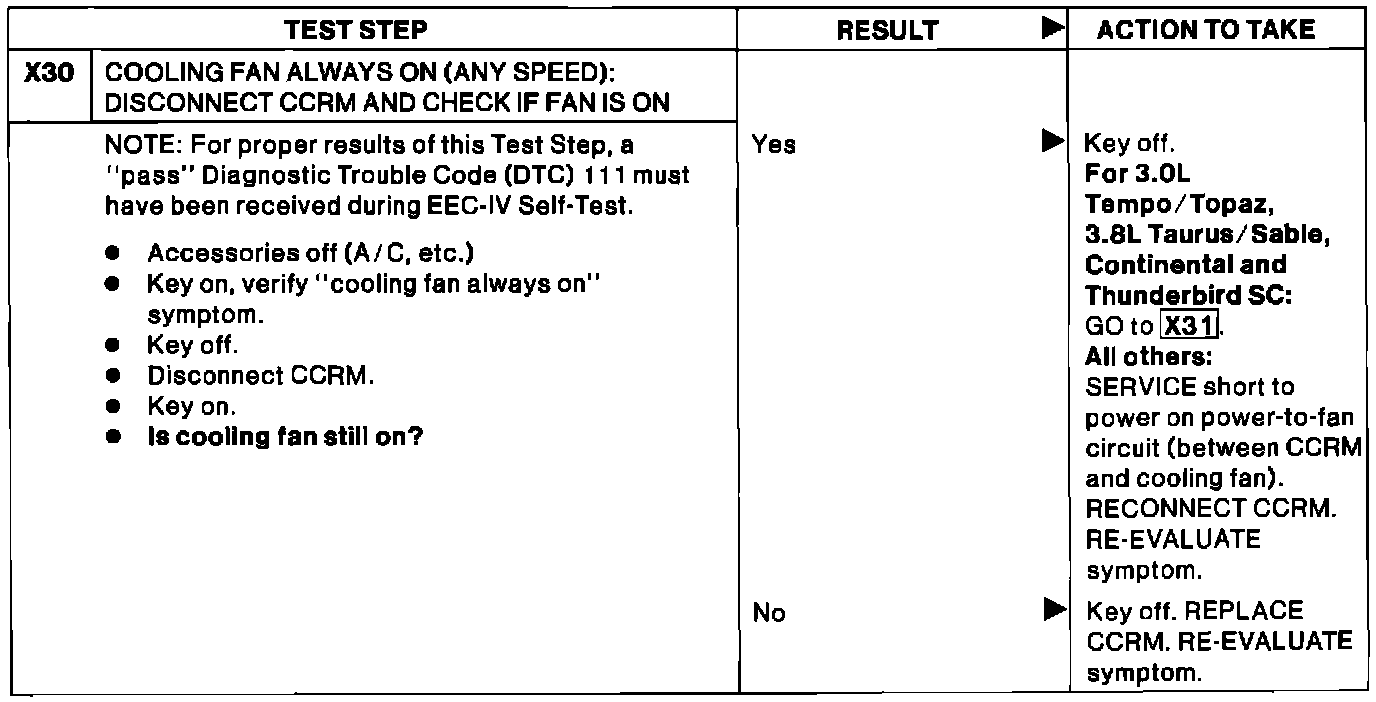

Pinpoint Test X30:
