KL - Shift Indicator Light (SIL)
>>

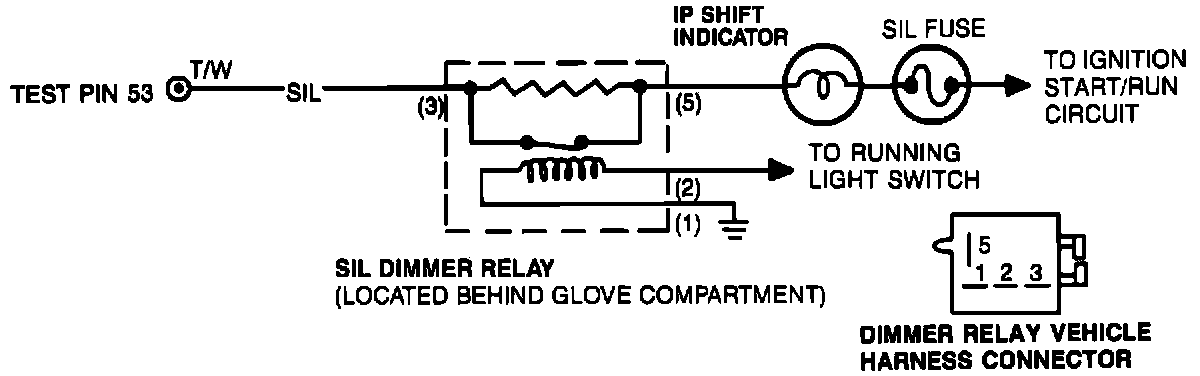

KL - Testing Schematic
KL - Testing Schematic
Schematic Diagram:
