Home >> Mercury >> 1993 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls

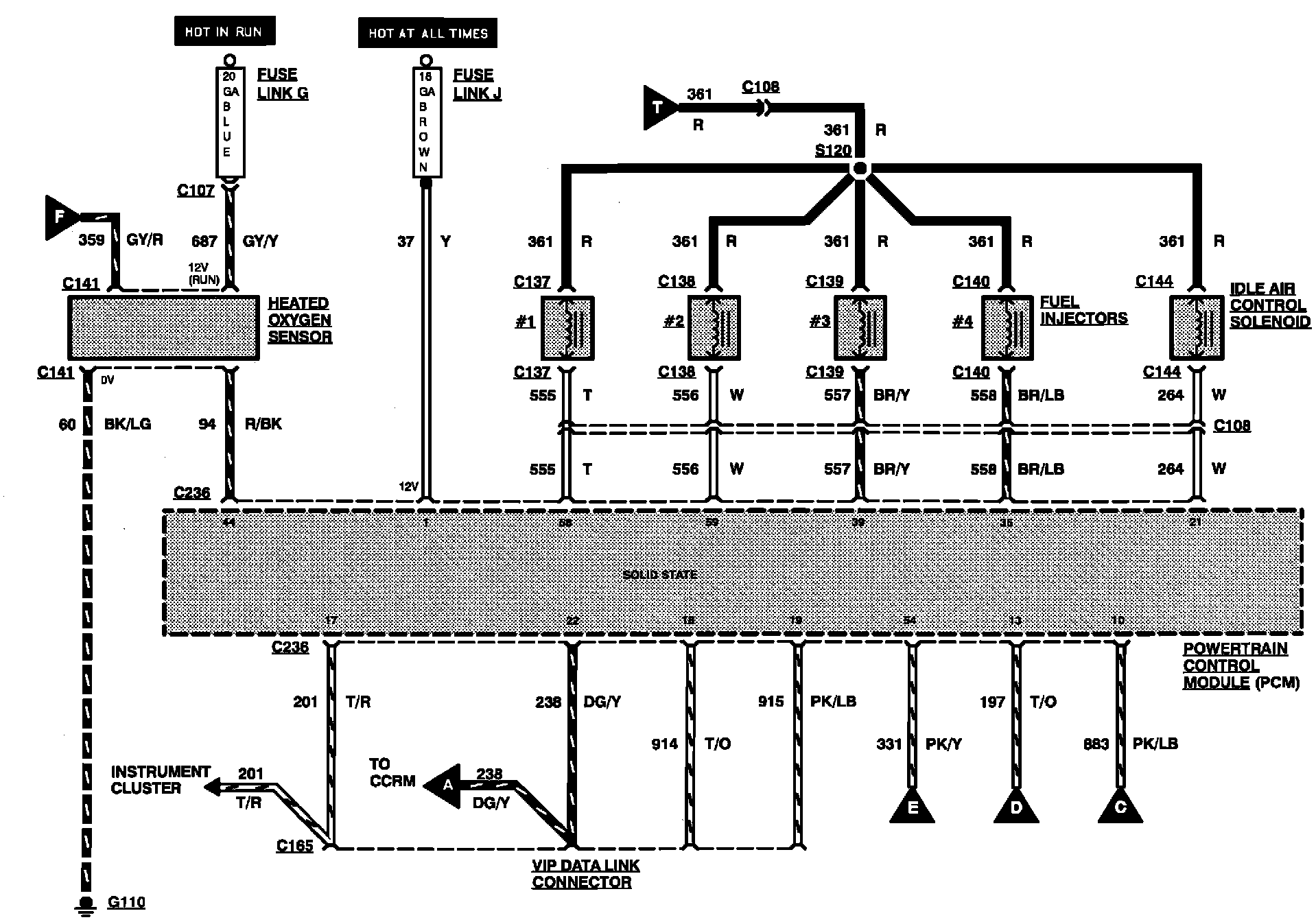

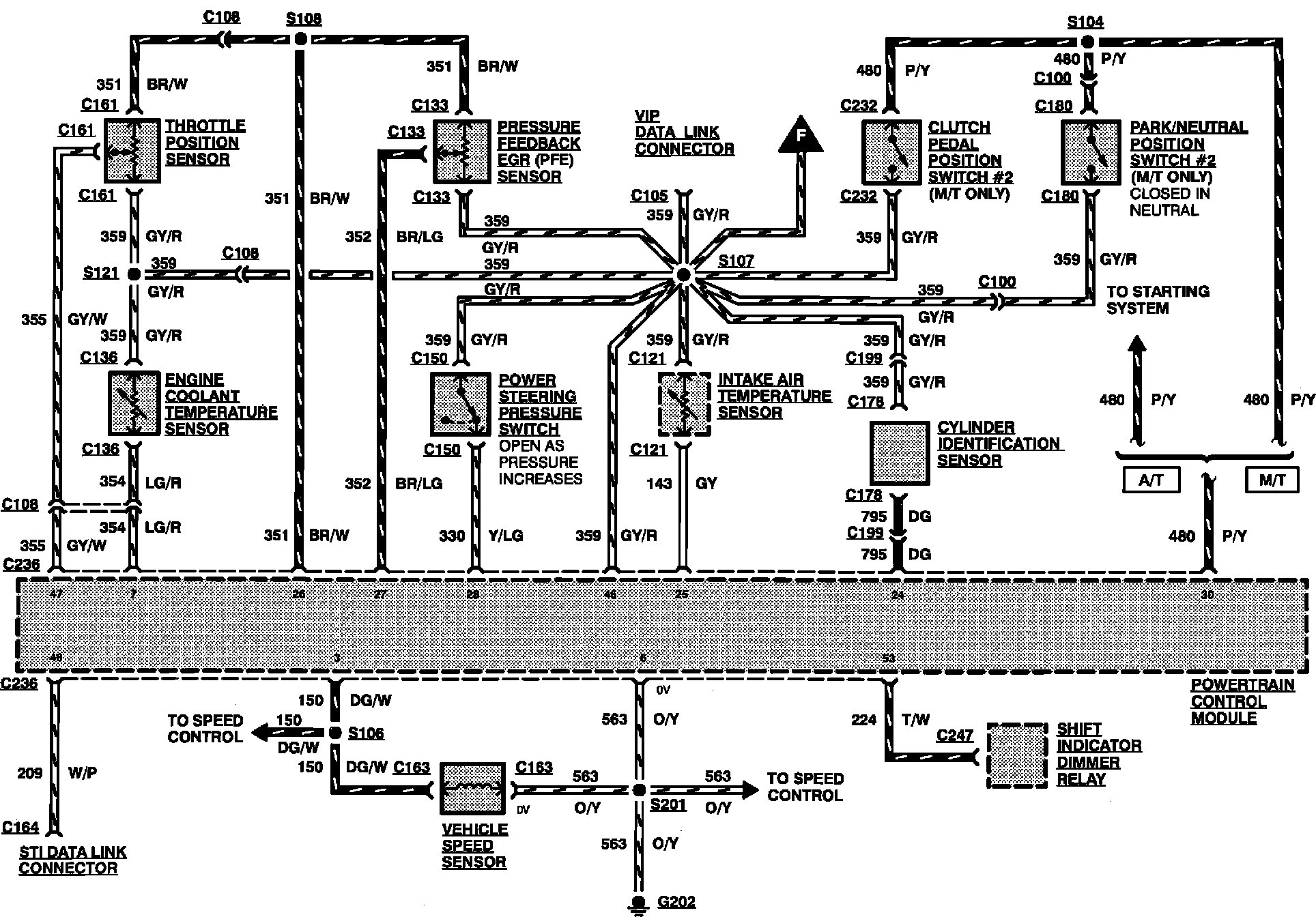

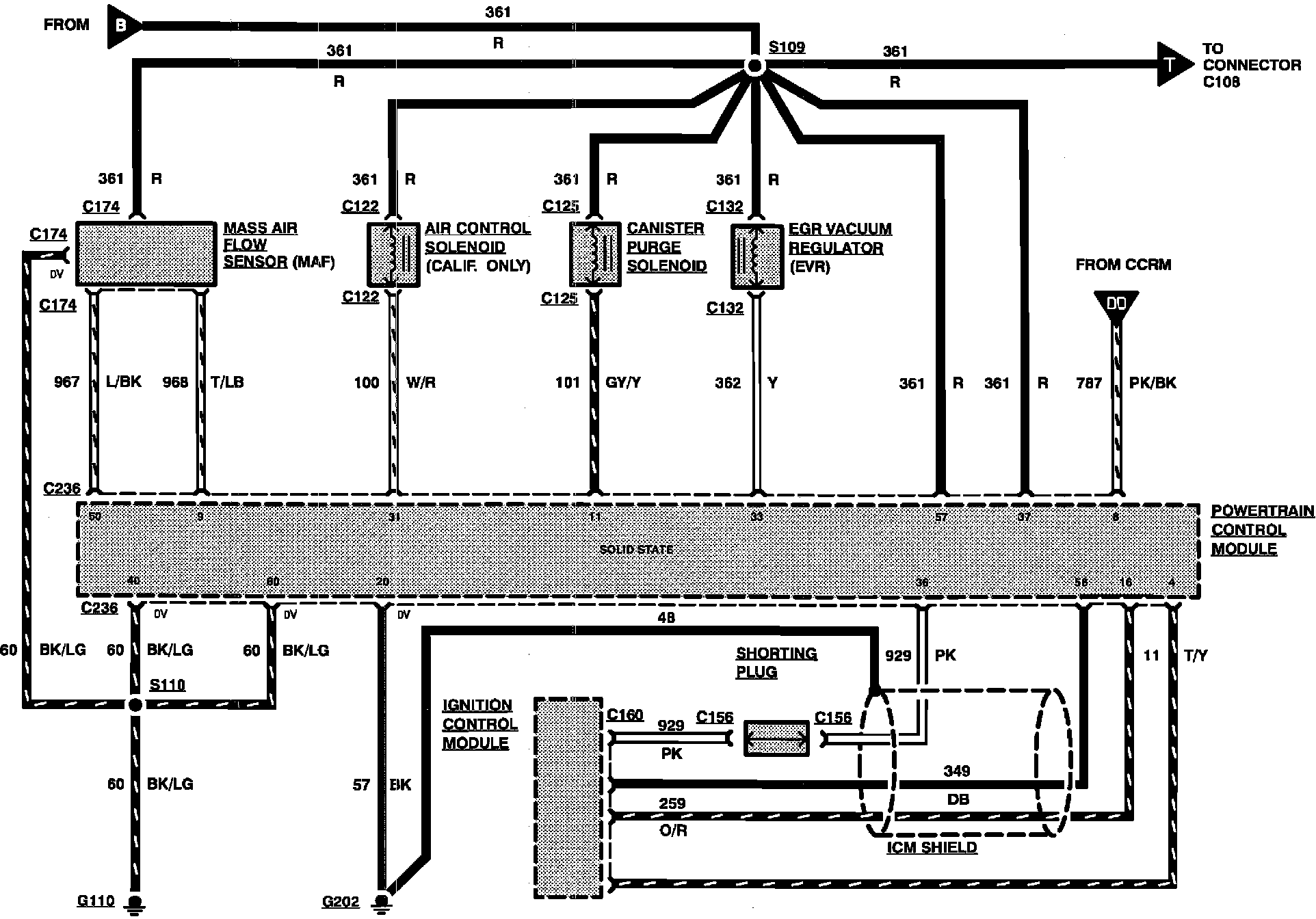

Engine Controls

Engine Controls:






Engine Controls:






Engine Controls:






Engine Controls:






Engine Controls:
