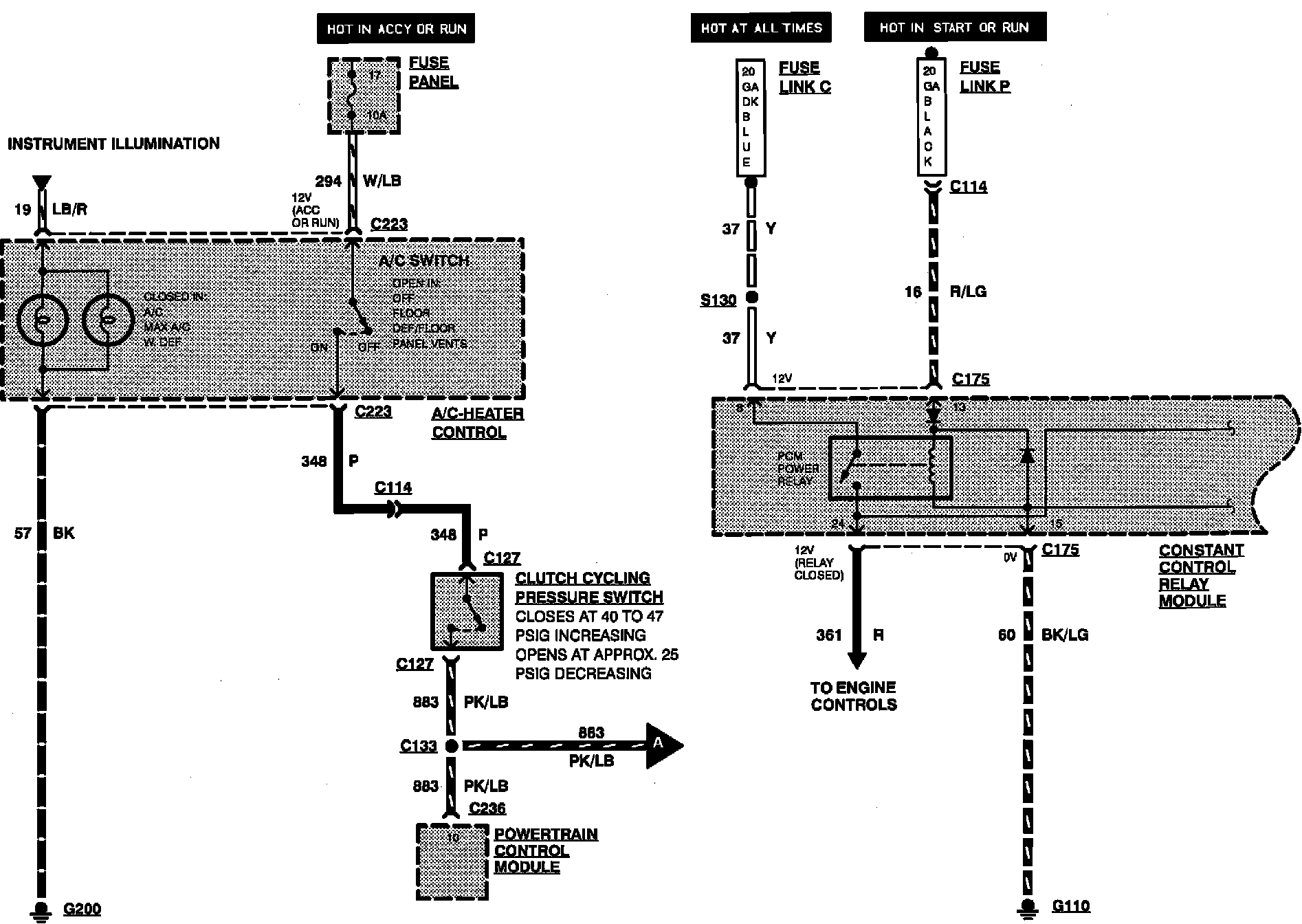

Home >> Mercury >> 1993 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> With A/C >> Part 1 of 3

Part 1 of 3

A/C-Heater:
