Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Windows and Glass >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Connector Views >> Master Window Control Switch >> Harness Side

Harness Side

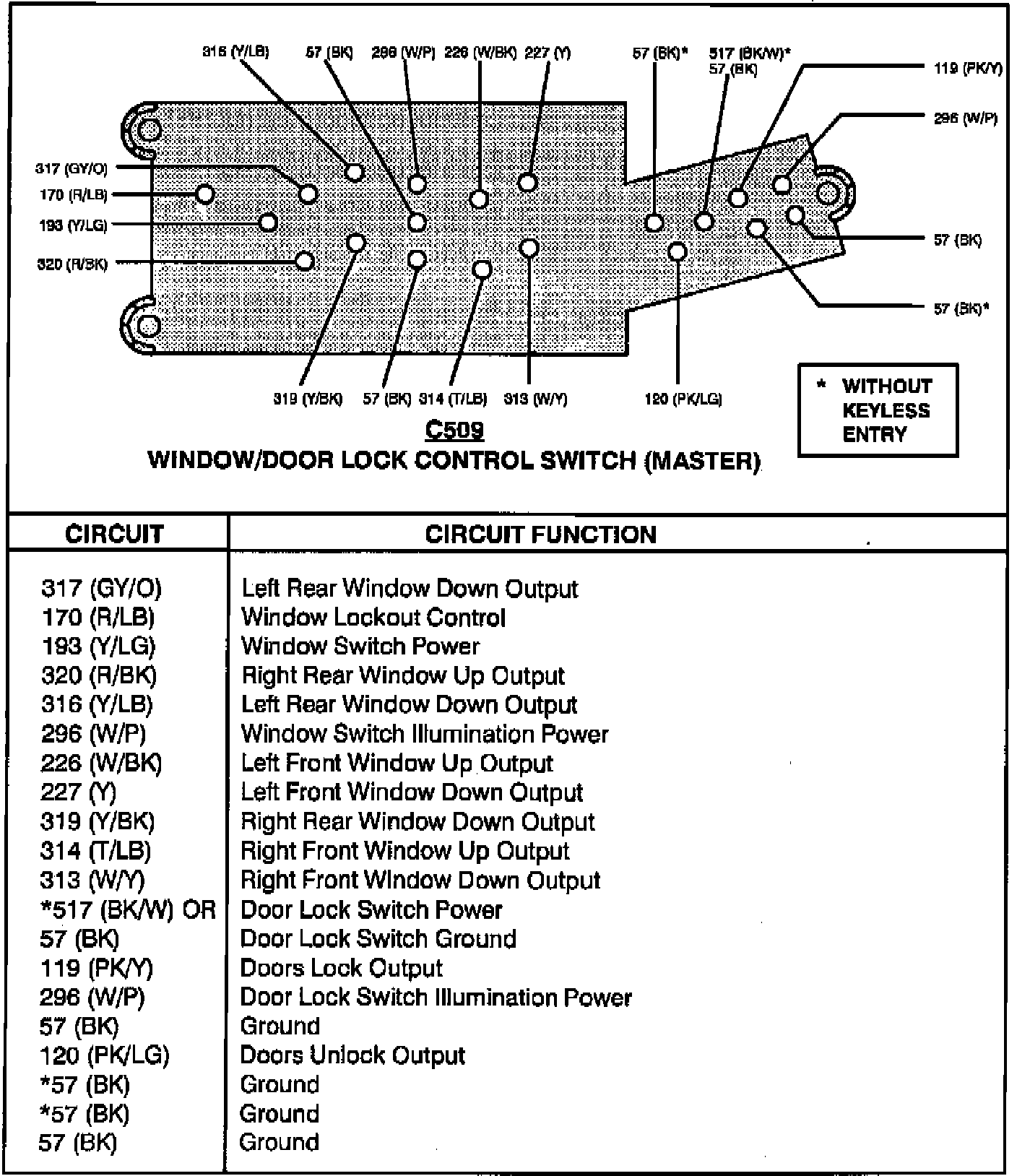

Window/Door Lock Control Switch (Master):
