Brake Switch - TCC: Locations

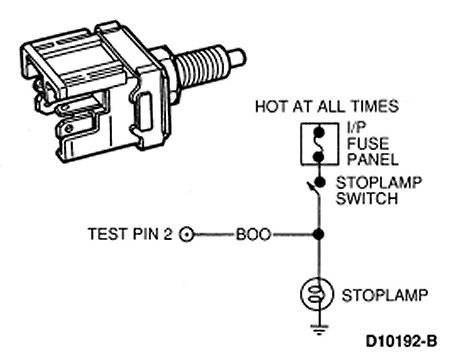

Brake On/Off Switch

Brake On/Off Switch:

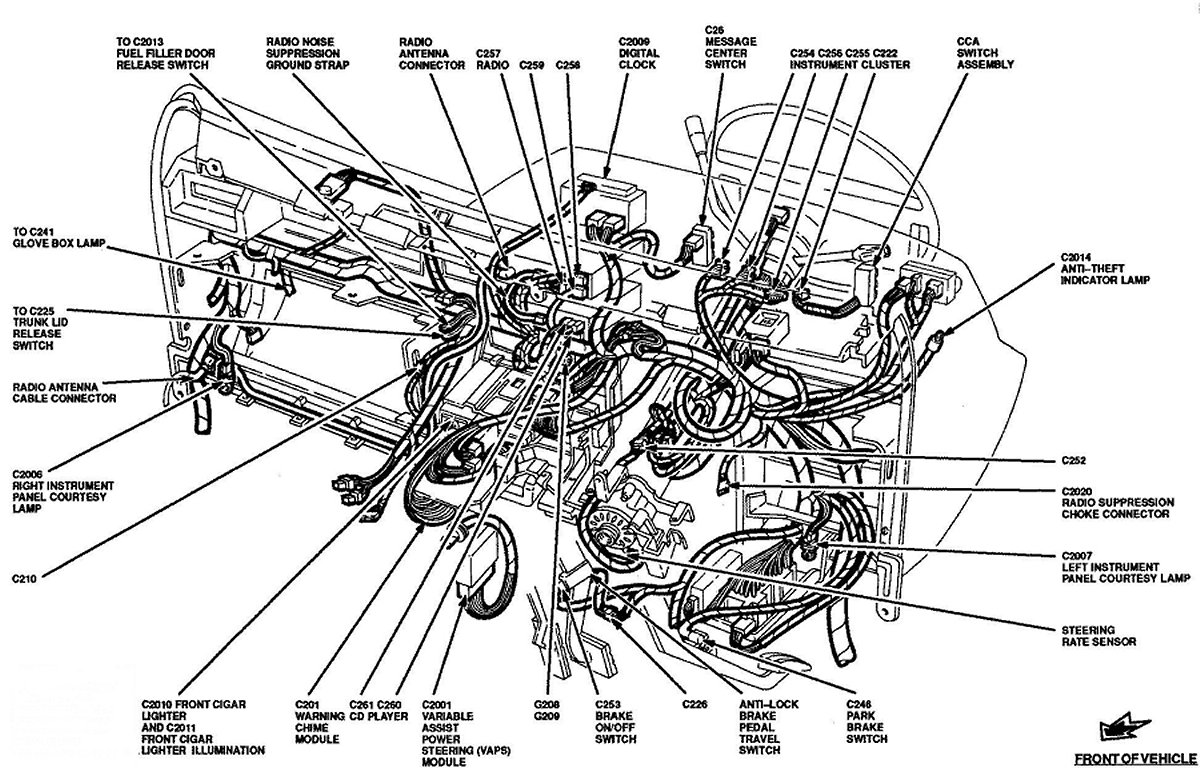

Located below LH side of I/P, on top of brake pedal support.
