Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Testing and Inspection >> Autolamp Time Control Switch

Autolamp Time Control Switch

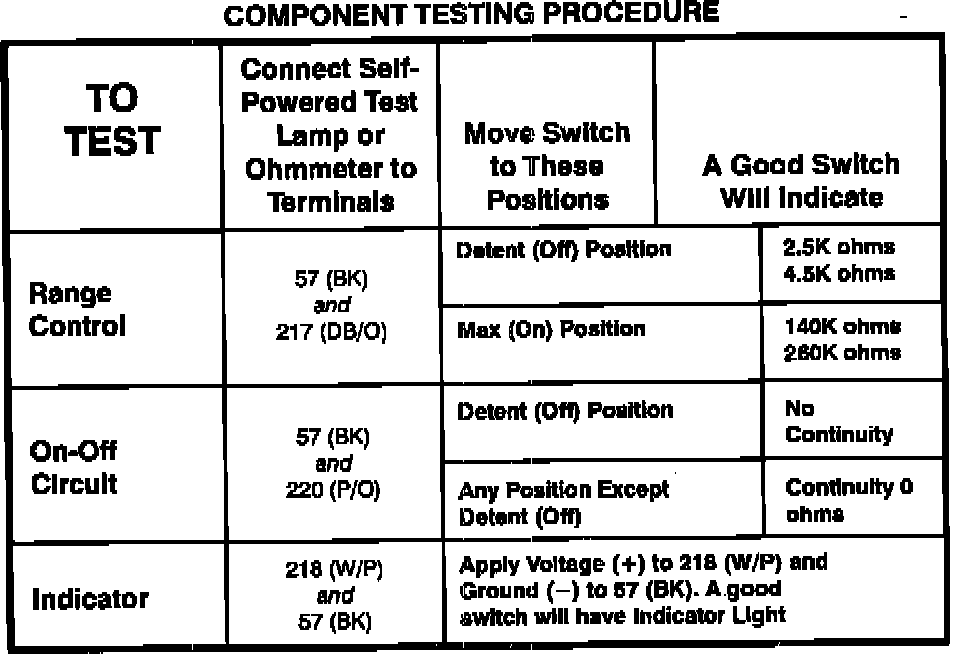

Component Testing Procedure:






COMPONENT TESTING PROCEDURE


Terminal Location:






TERMINAL IDENTIFICATION

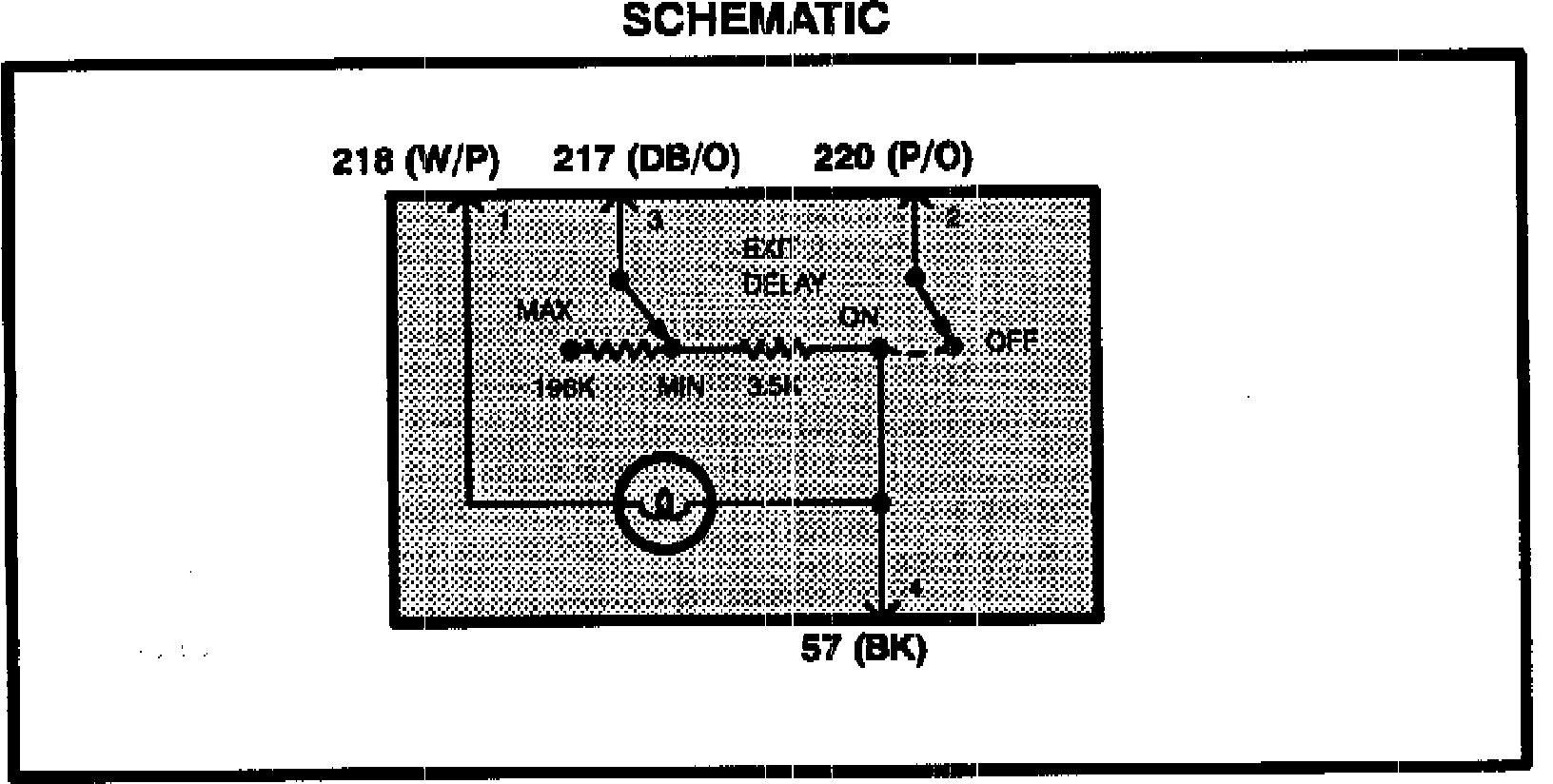

Schematic, Autolamp Time Control Switch:






SCHEMATIC
