TF - Transmission Speed Sensor
>>

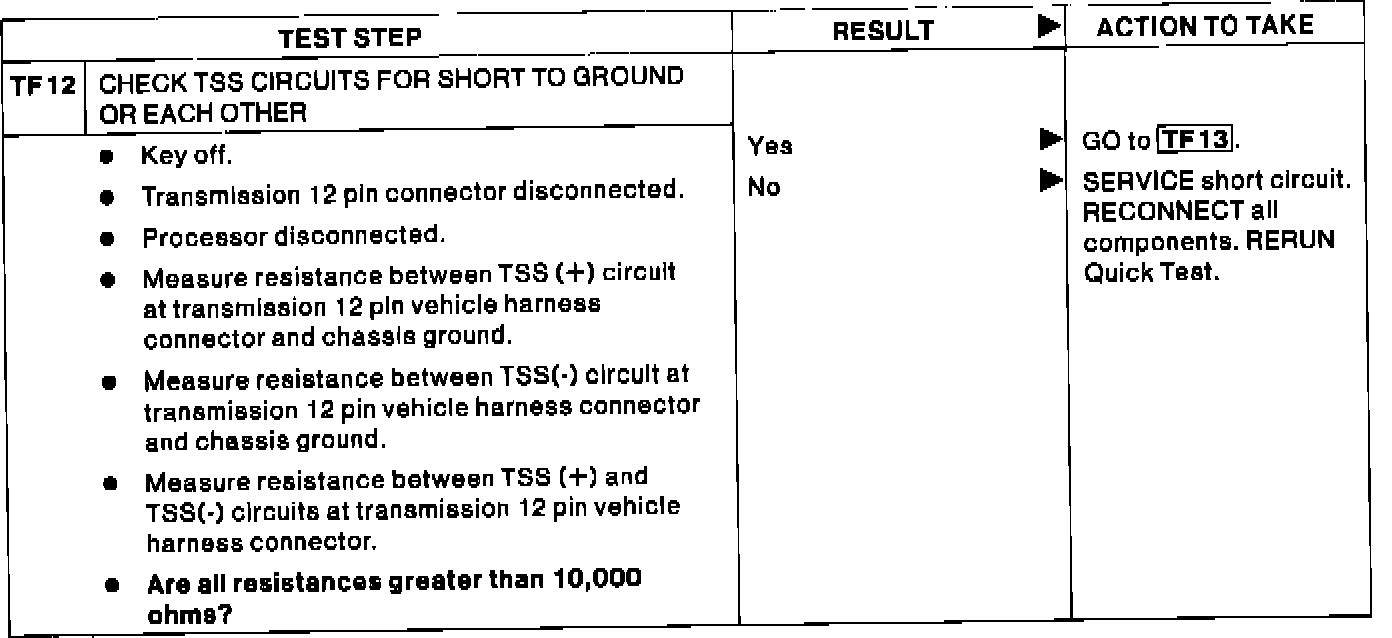

TF12 - Check TSS Circuit For Short to Ground or Each Other
TF12 - Check TSS Circuit For Short to Ground or Each Other
Pinpoint Test TF12:
