Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> TD - Manual Lever Position (MLP) Sensor >> TD22 - Road Test

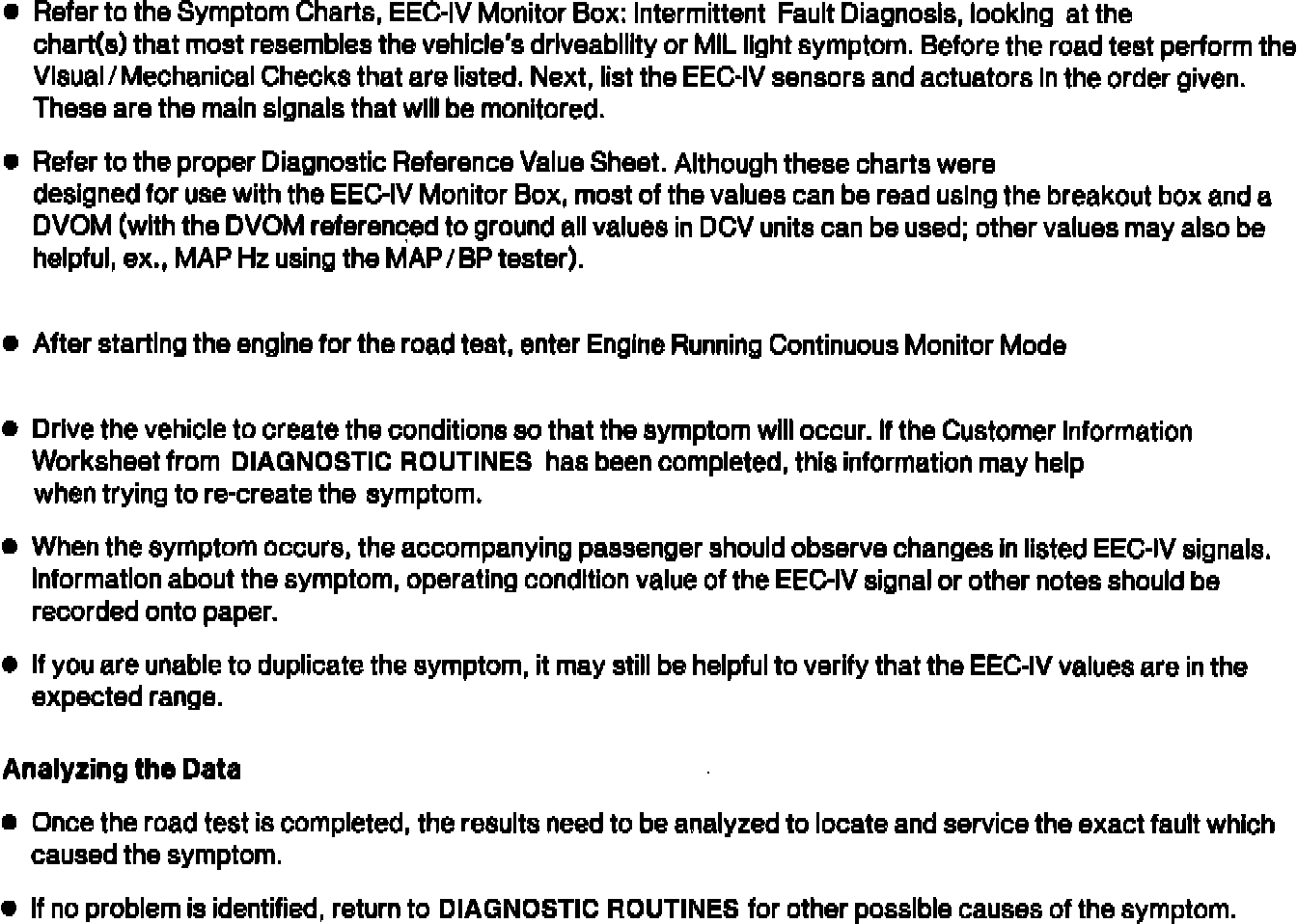

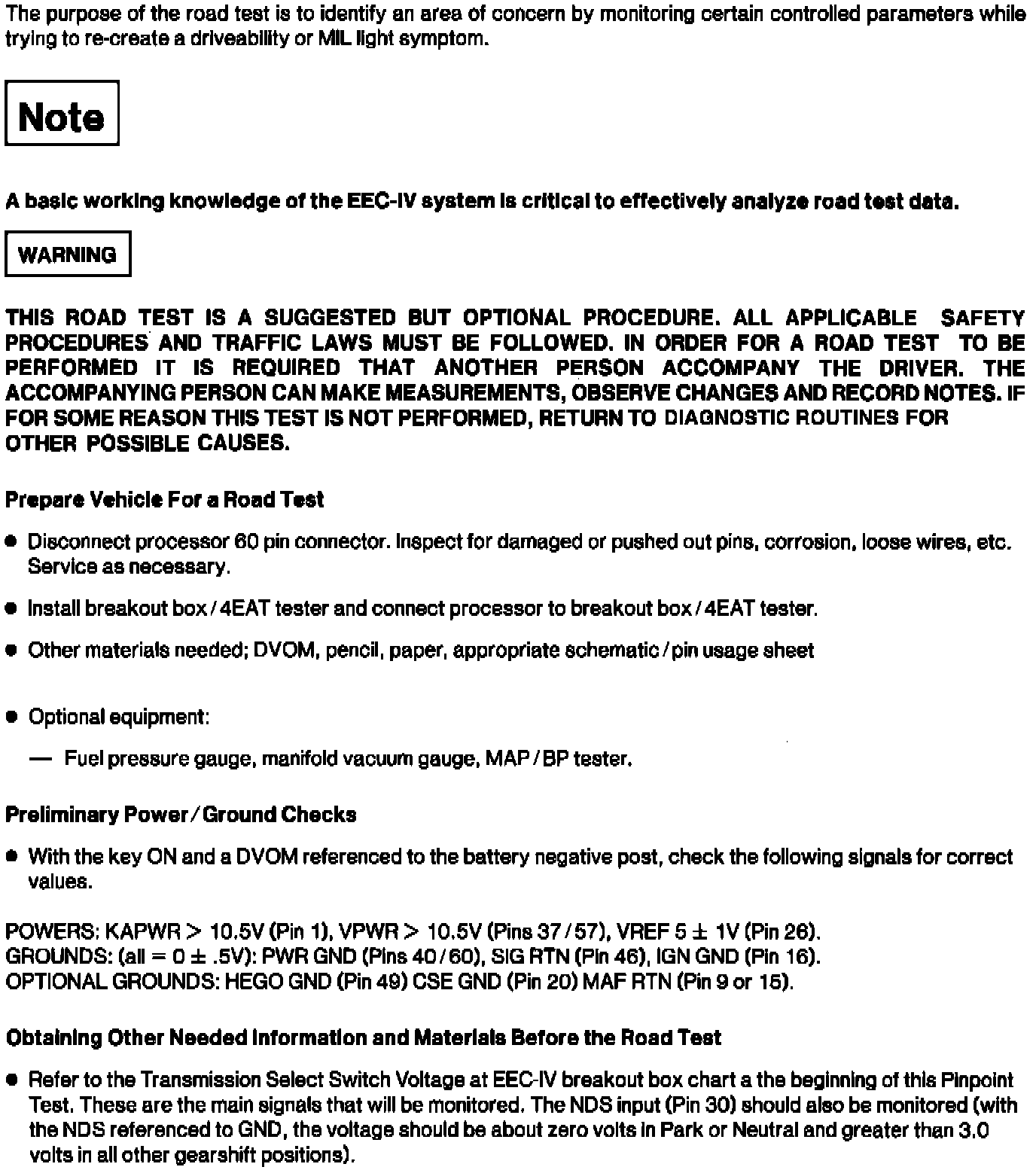

TD22 - Road Test


Pinpoint Test TD22:
