Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> TB - 4X4 Low/Overdrive Cancel Switch >> TB6 - Check Key Power Through TCIL Circuit

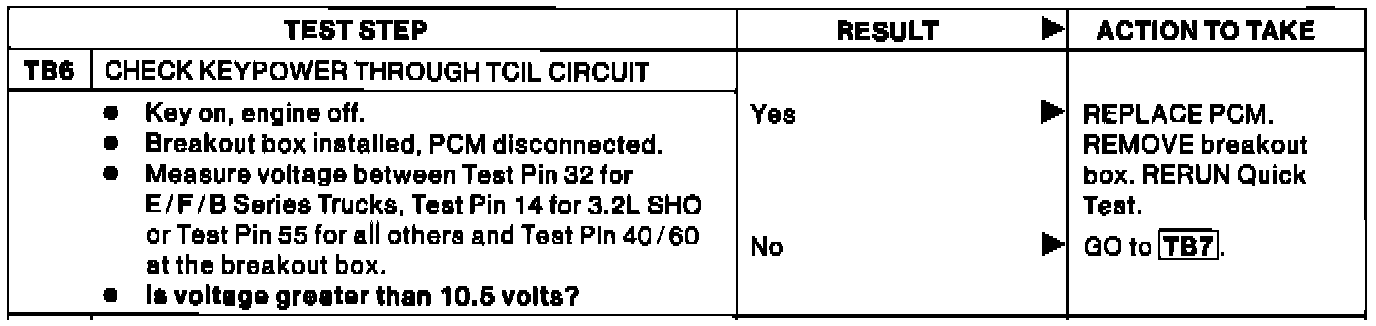

TB6 - Check Key Power Through TCIL Circuit

Pinpoint Test TB6:
