Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KN - Fuel Pressure Regulator Control Solenoid >> KN7 - Check FPRC Circuit For Short to Power and Ground

KN7 - Check FPRC Circuit For Short to Power and Ground

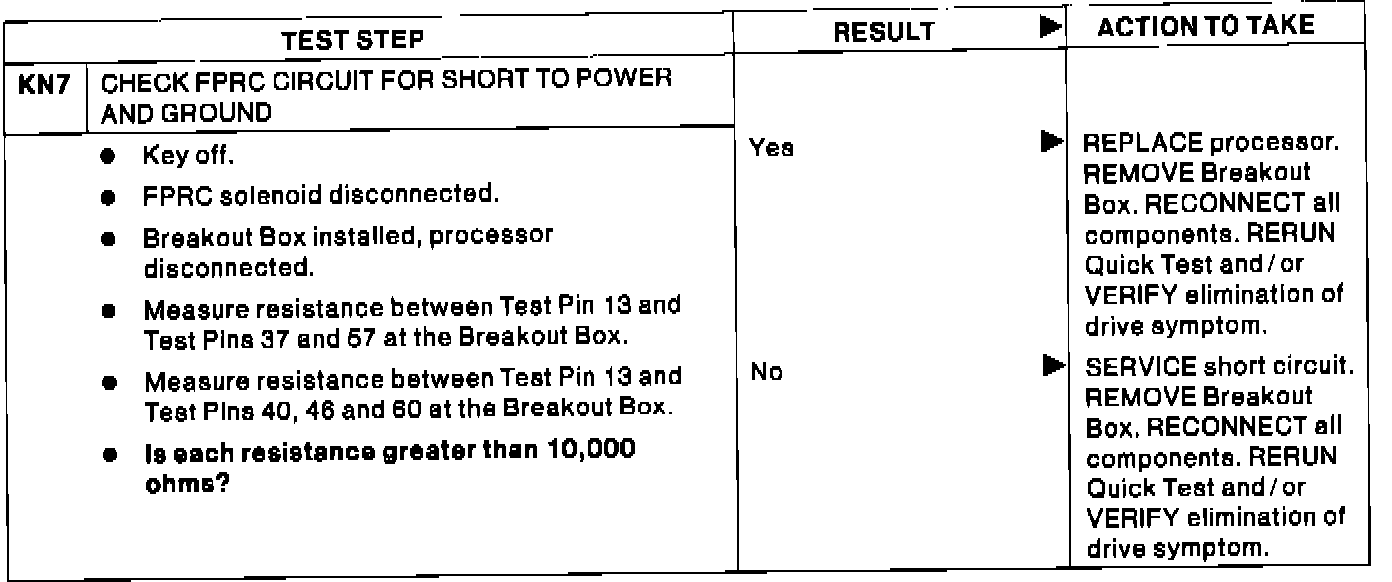

Pinpoint Test KN7:
