Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KE - Idle Speed Control >> KE25 - Lack High Idle W/Cold: Verify ISC-BPA Not Stuck Closed

KE25 - Lack High Idle W/Cold: Verify ISC-BPA Not Stuck Closed

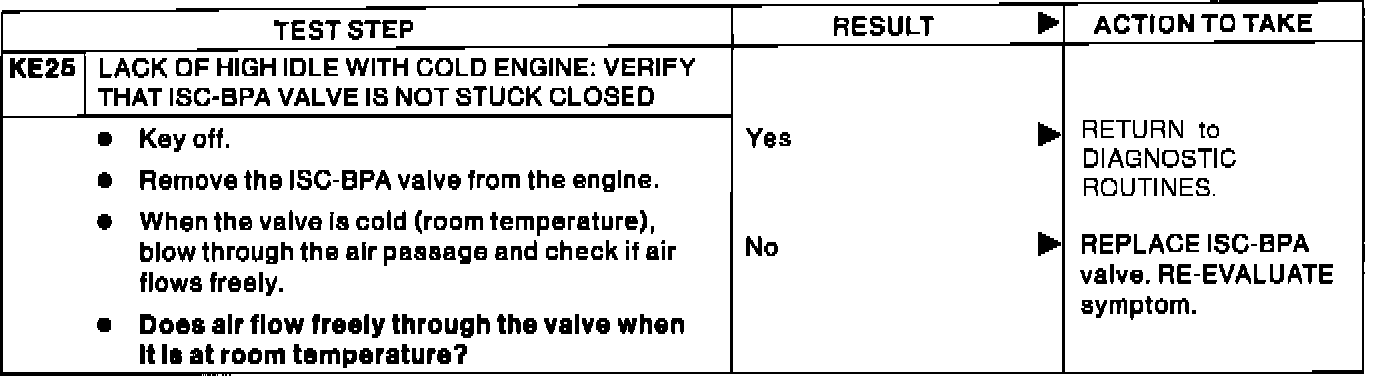

Pinpoint Test KE25:
