DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>
DL100 - Inspect PFE Supply Hose For Blockage
DL100 - Inspect PFE Supply Hose For Blockage

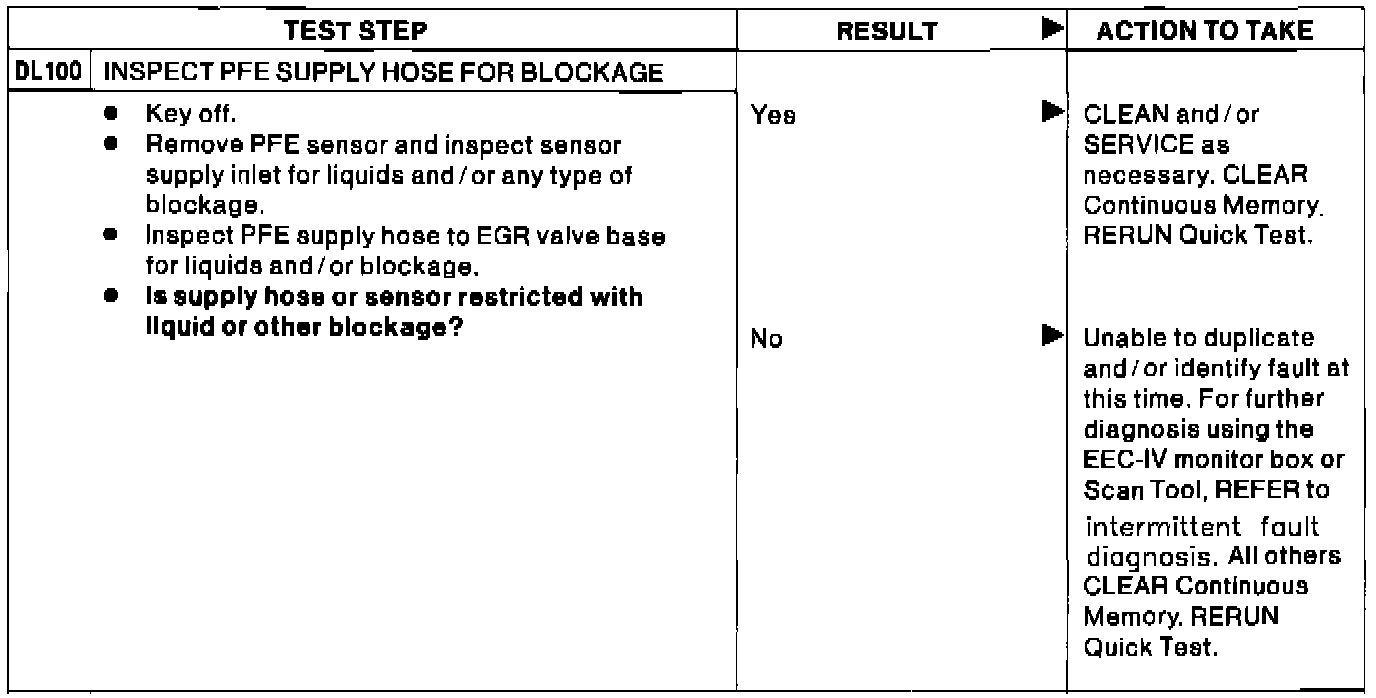

Pinpoint Test DL100:
