Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> AA - No Start Test >> AA10 - Isolate Short(s) In Processor

AA10 - Isolate Short(s) In Processor

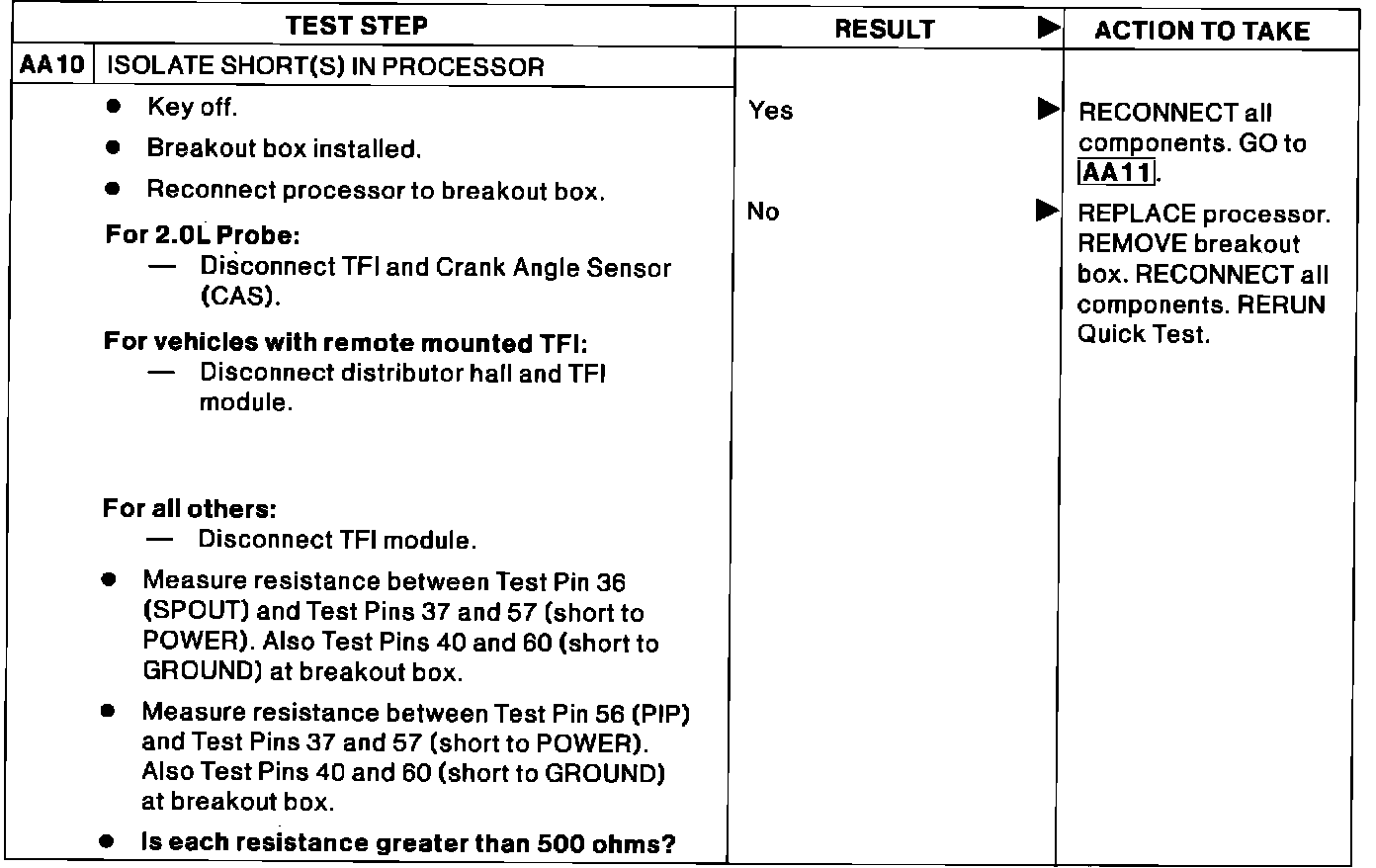

Pinpoint Test AA10:
