Manual A/C-Heater System Vacuum Leak Diagnostics
>>
A1-A4
A1-A4

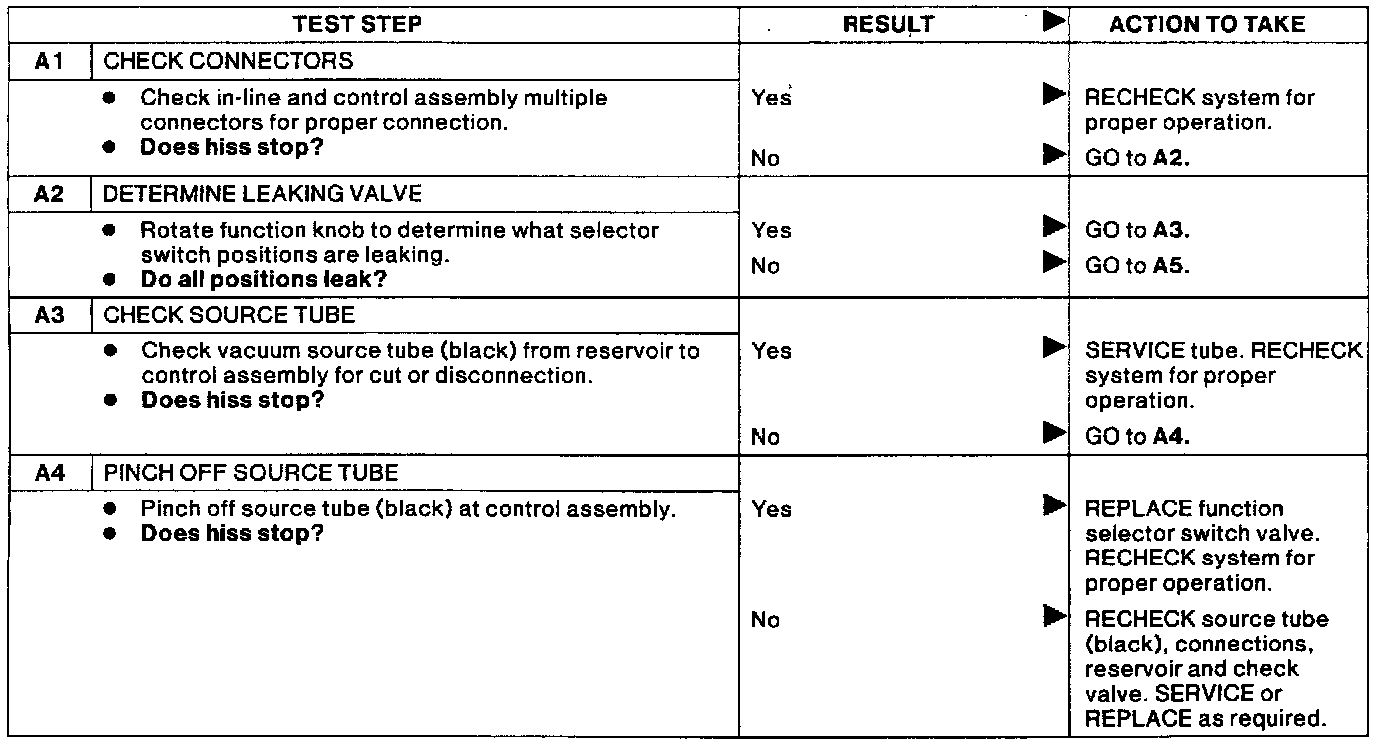

Manual A/C-Heater System Vacuum Leak Diagnostics (Test A1-A4):
