Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Engine Overheats >> Step 3

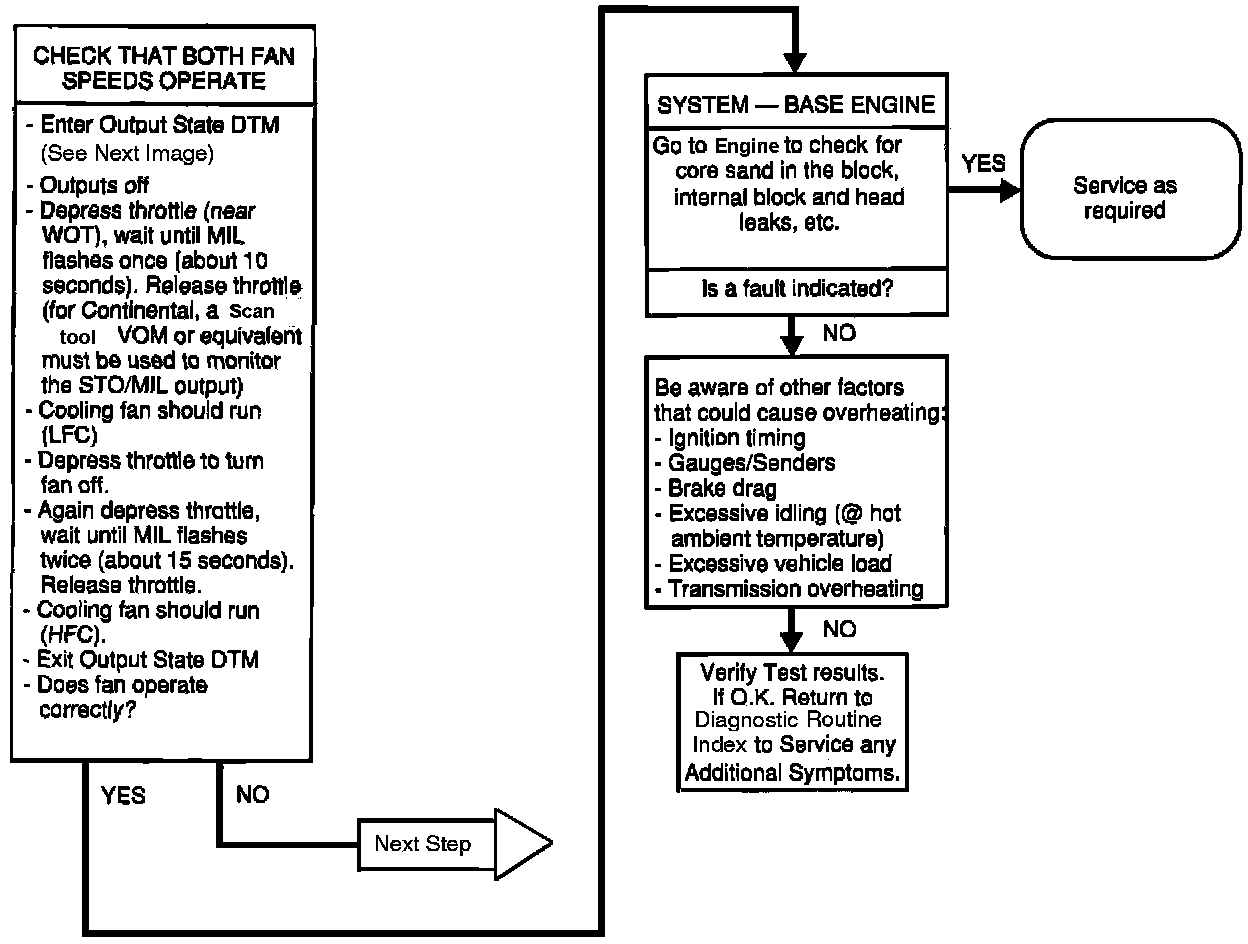

Step 3

Start Here:

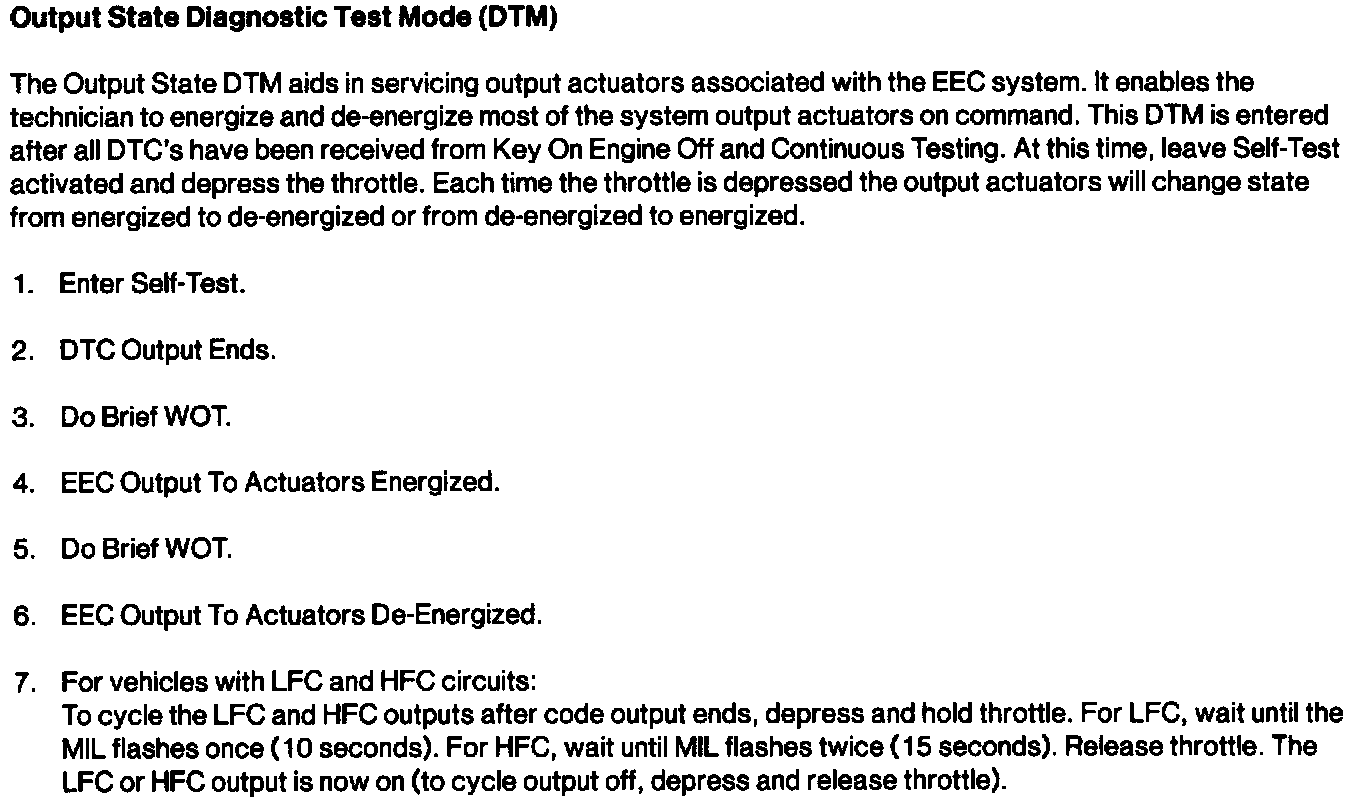

Output State Diagnostic Test Mode (DTM):
