Powertrain Control Module (PCM)

Component Locations:

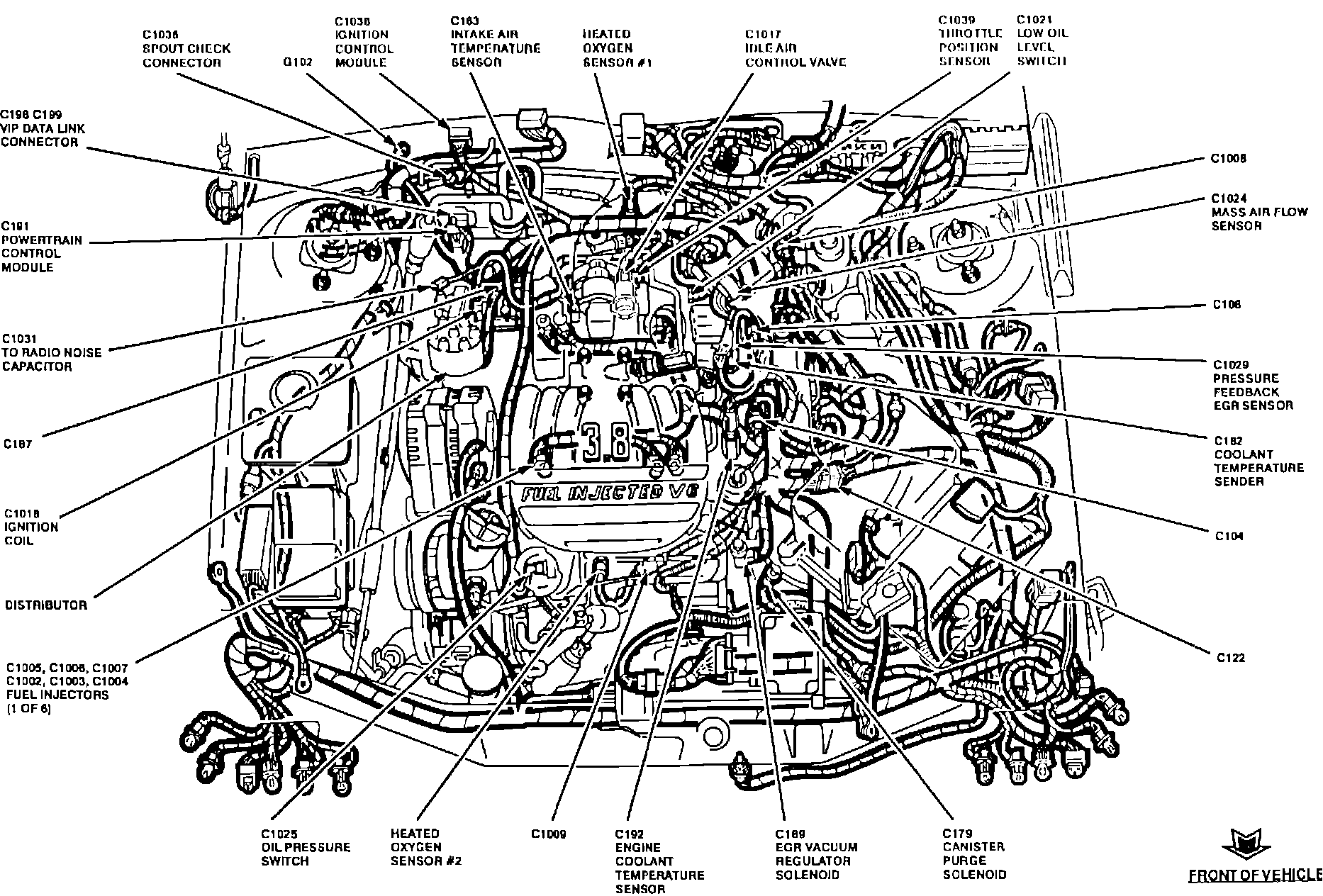

The Powertrain Control Module (PCM) Connector C191 is located at the top right hand side of the safety wall, on the PCM.
