AM/FM ESR or AM/FM/Cassette ESC

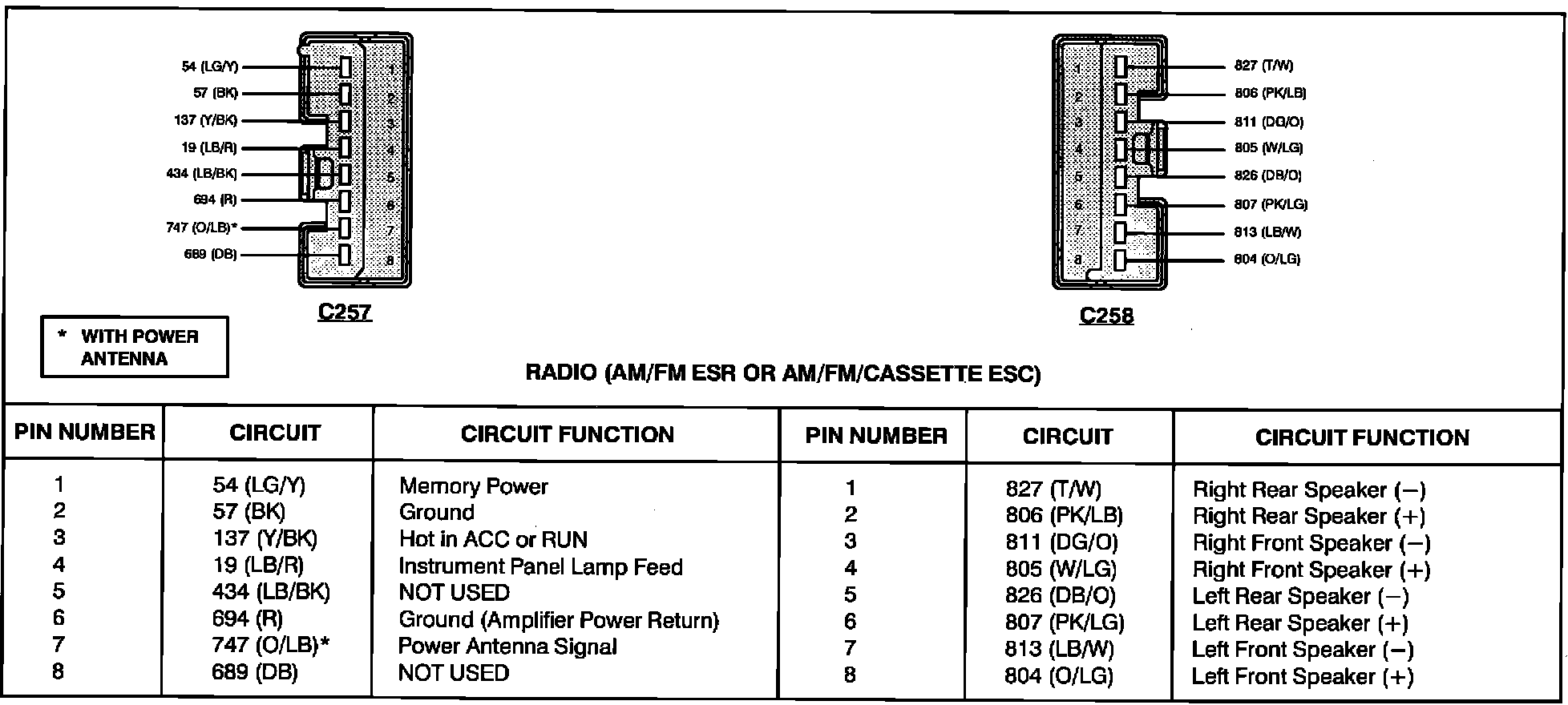

Radio (AM/FM ESR Or AM/FM/Cassette ESC):



Radio Chassis Connector C1:



Radio Chassis Connector C2:



Radio Signal Search Remote Control Switch:



Radio Amplifier Connector C1:



Radio Amplifier Connector C2:
