Removal and Installation

NOTICE: Ensure that one of the two slots in piston face is positioned so it will engage nib on brake pad.

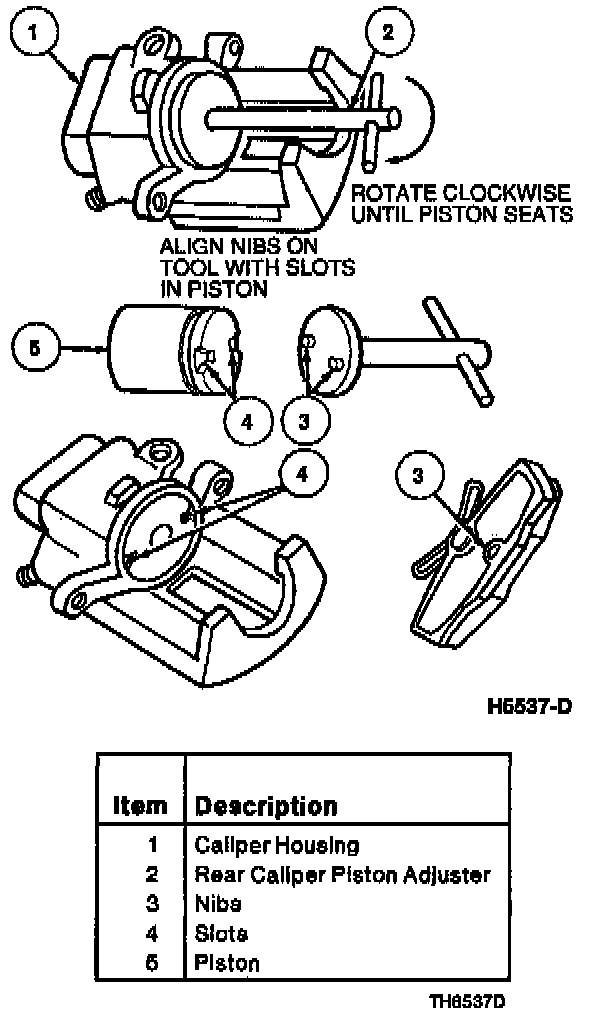

Removing/Installing Piston:

1. Using Rear Caliper Piston Adjuster T87P-2588-A rotate piston clockwise until it is fully seated.
2. Install inner and outer pad assemblies on anchor plate.
3. Rotate caliper assembly over rotor into position on anchor plate. Ensure that pad and lining assemblies are installed correctly.

Pinch Bolt And Slider Pin:

4. Remove residue from the pinch bolt threads and apply one drop of Threadlock and Sealer E0AZ-19554-AA or equivalent. Install and tighten guide pin bolts to 31-35 Nm (23-26 ft lb).

Parking Brake Cable Assembly:

5. Attach cable end to parking brake lever. Install cable retaining clip on caliper assembly.
6. Position brake flex hose and bracket assembly to shock absorber bracket and install retaining screw. Tighten to 11-16 Nm (8-11 ft lb).

WARNING: Before moving vehicle, pump brake pedal several times to be sure it is firm. Do not move vehicle until a firm pedal is obtained.
