Home >> Mercury >> 1993 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Testing and Inspection >> Pinpoint Tests >> A: Radio Chassis Inoperative/Does Not Operate Properly

A: Radio Chassis Inoperative/Does Not Operate Properly

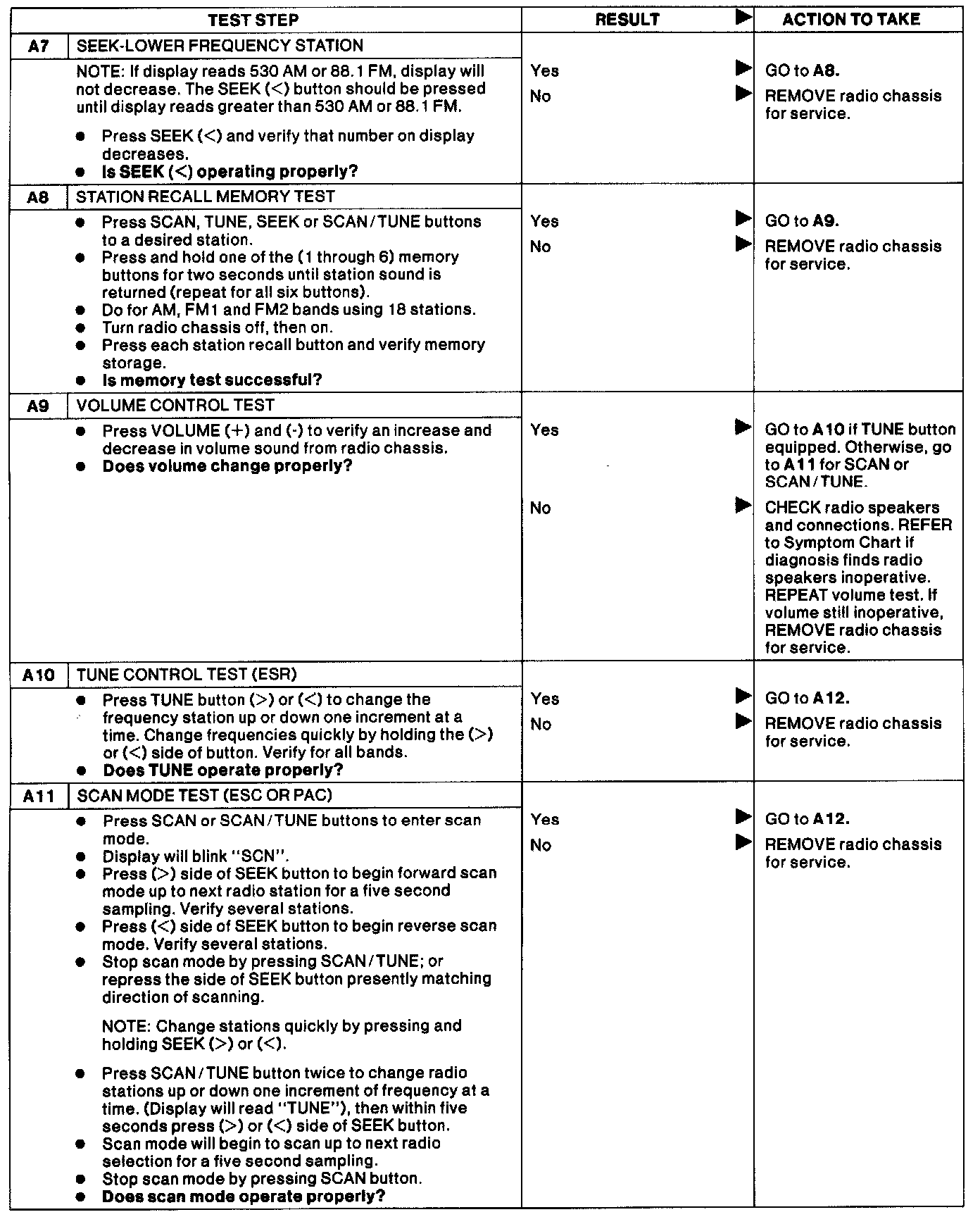

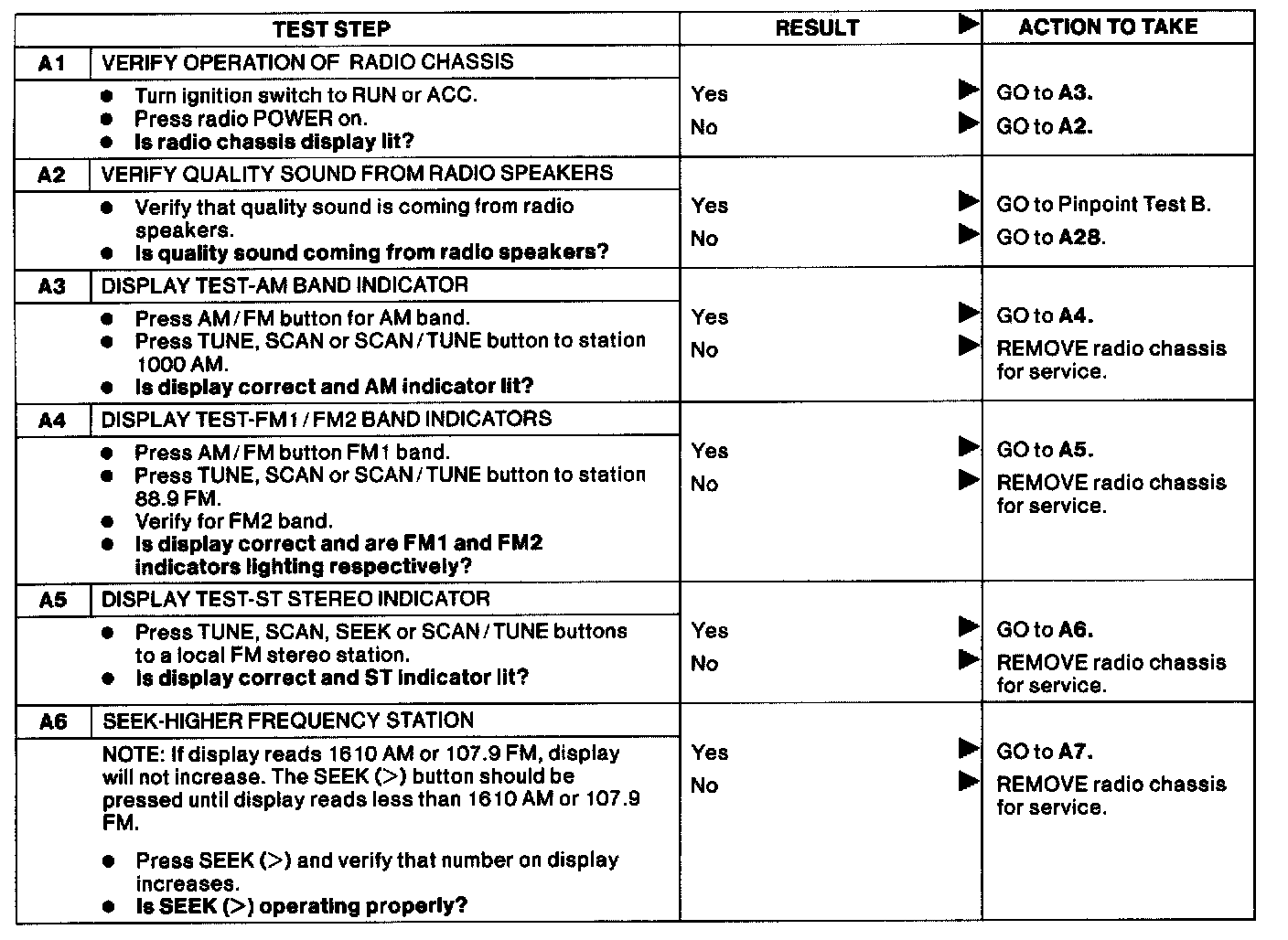

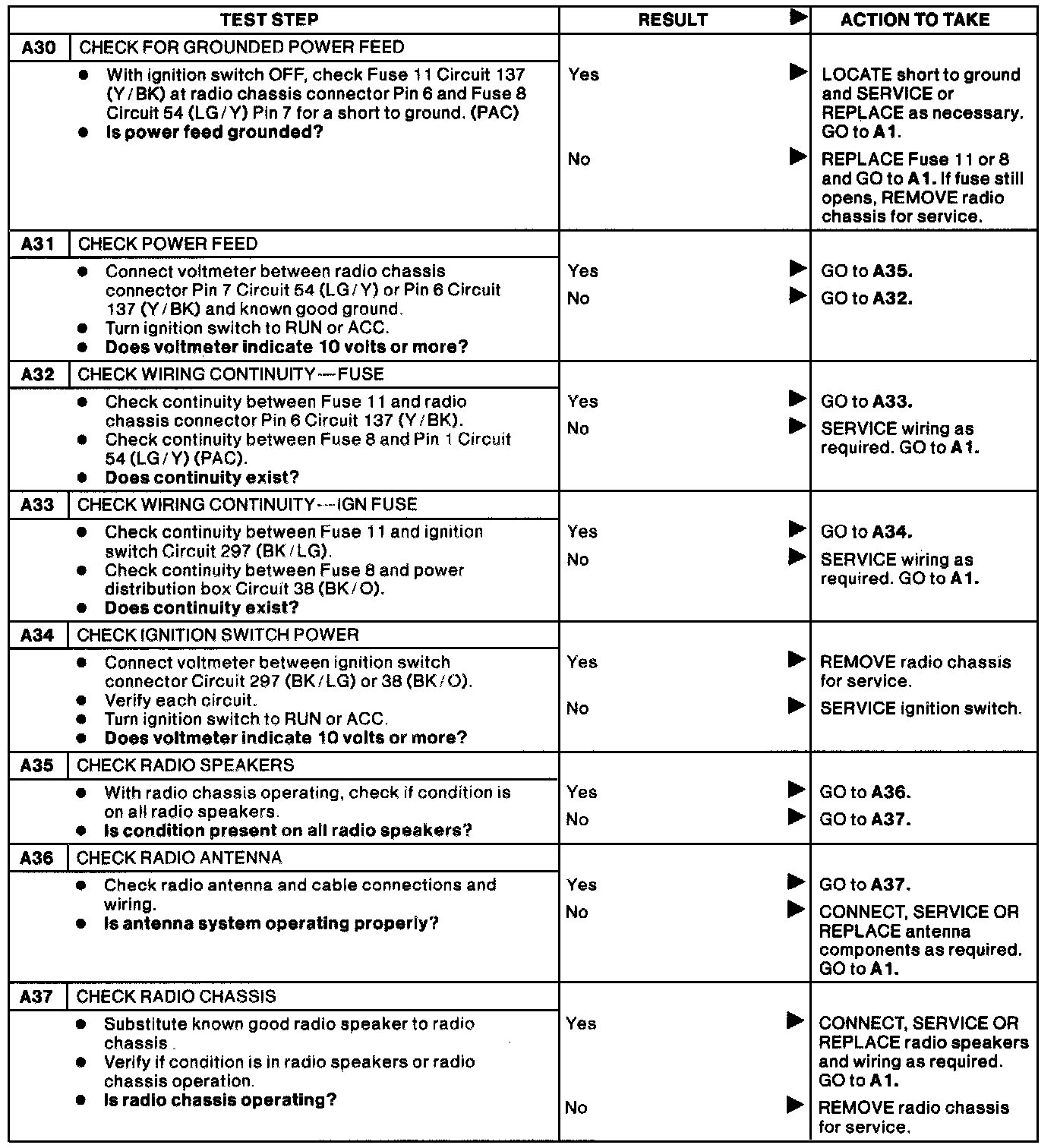

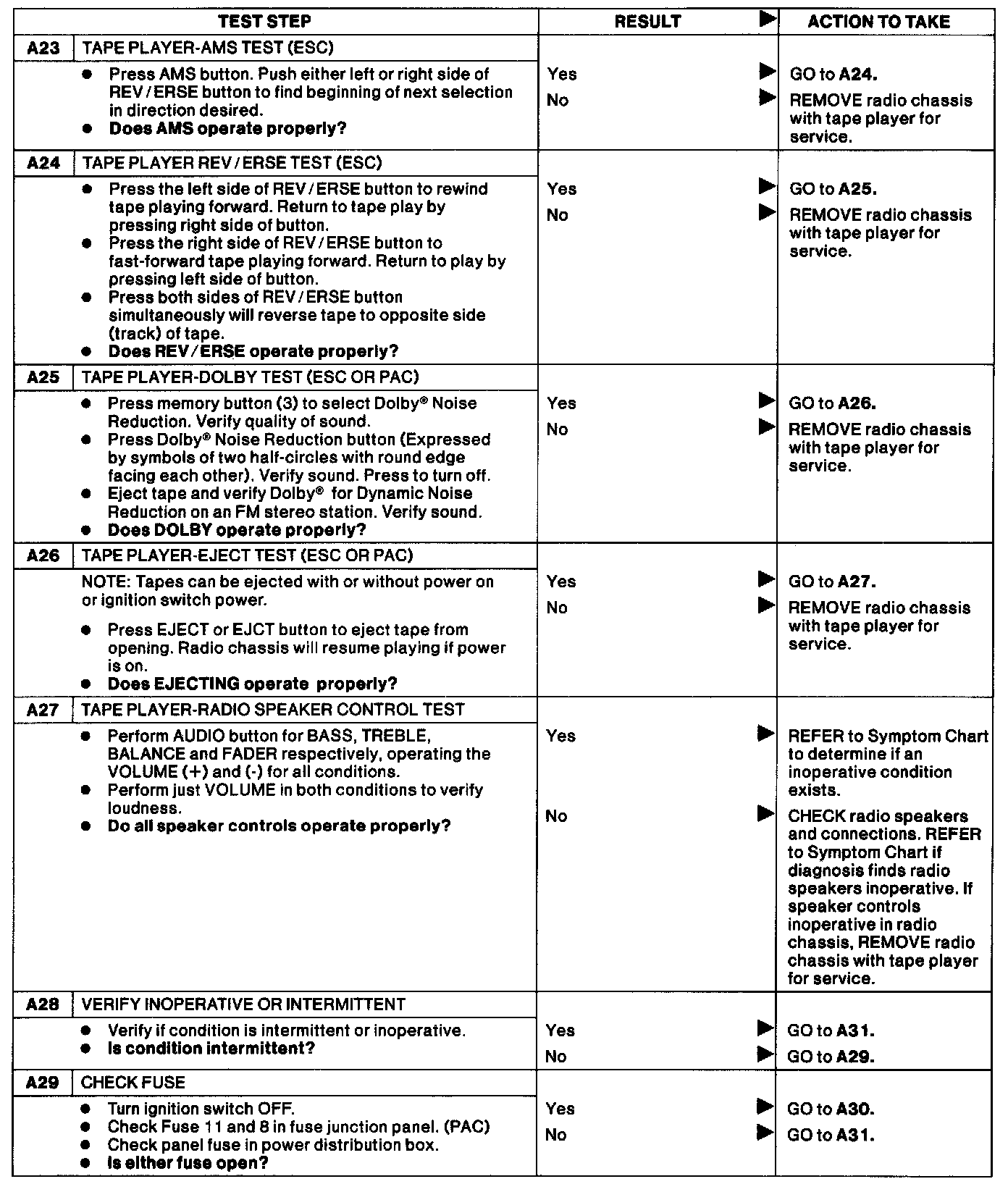

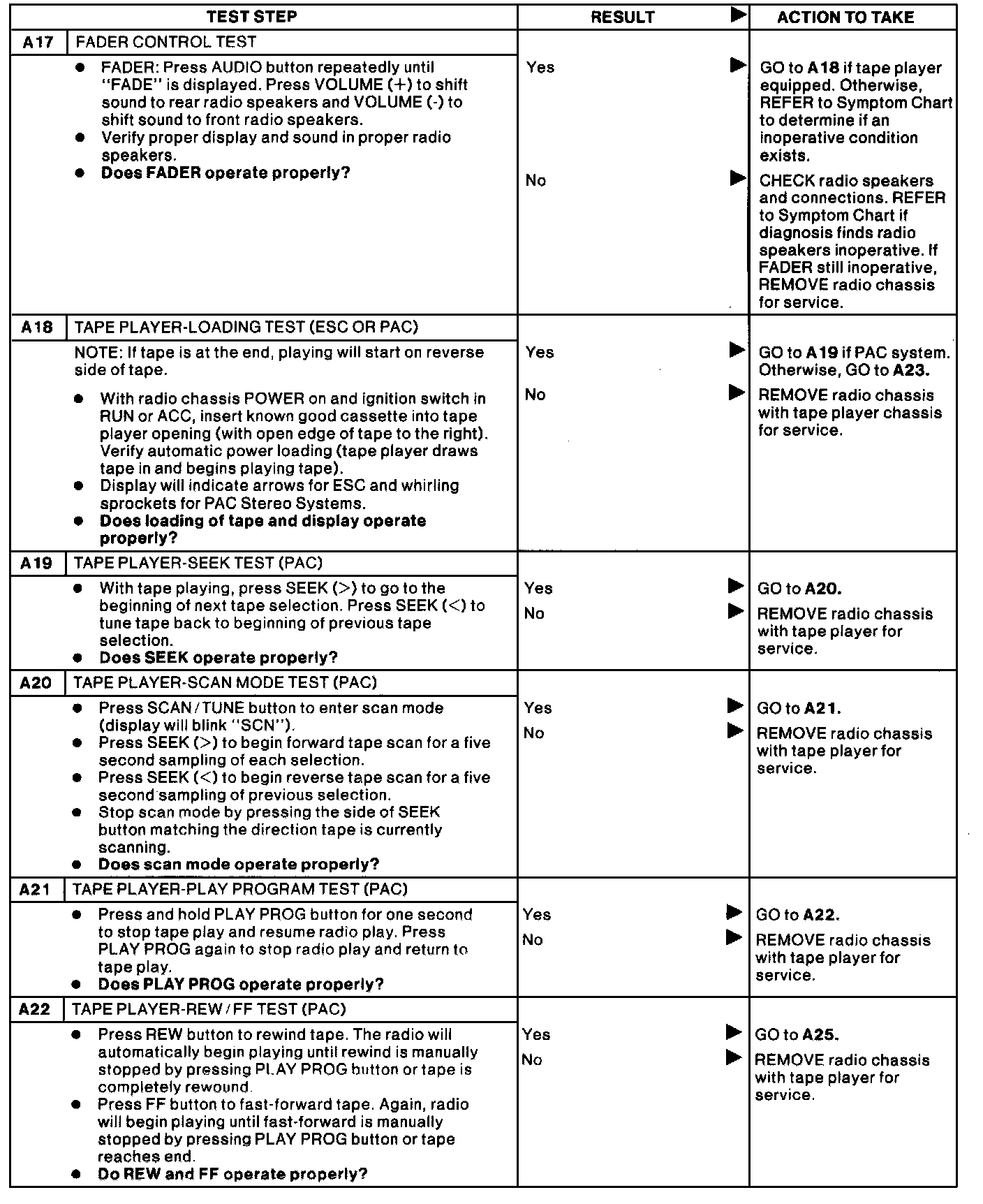

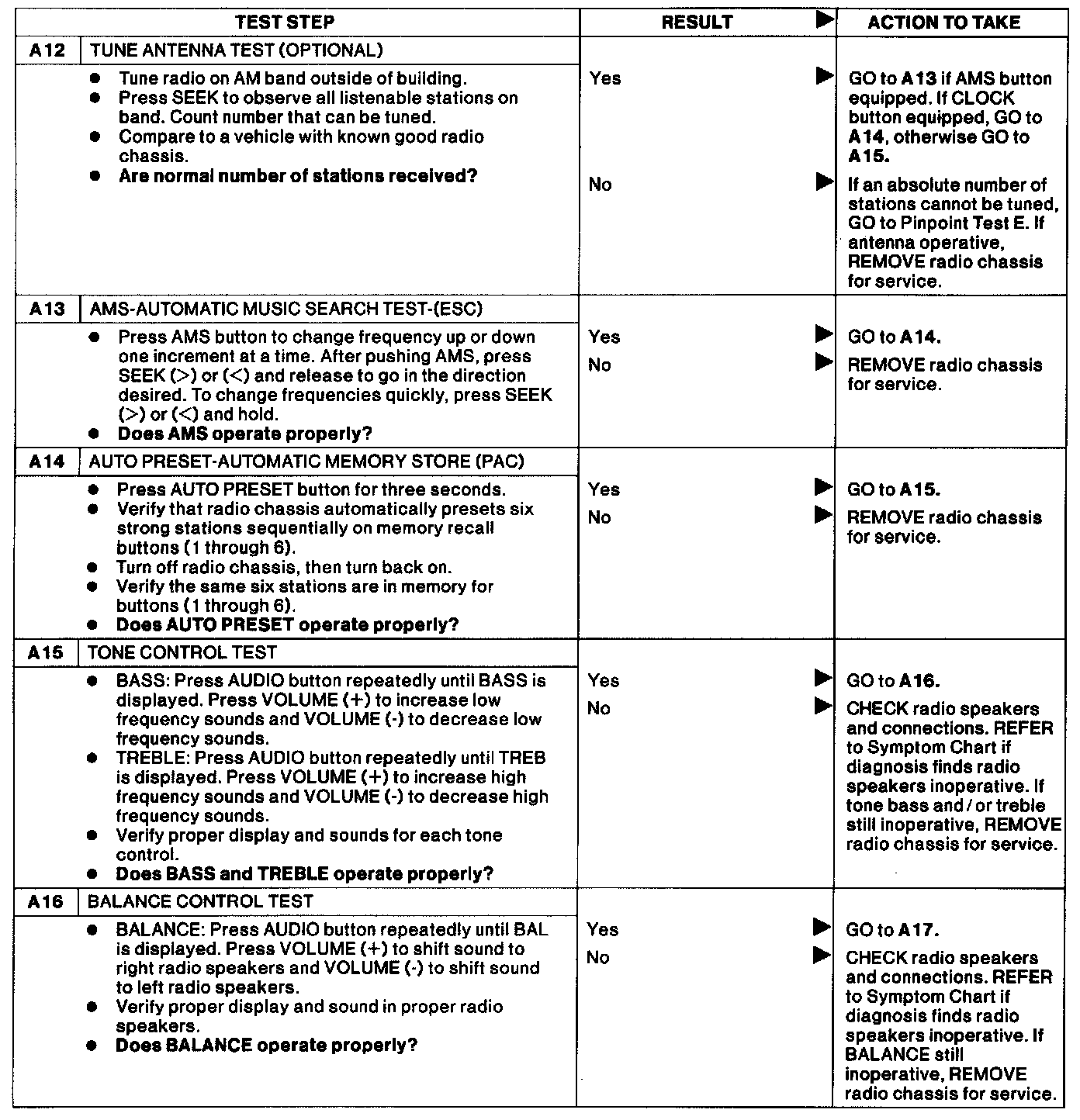

Radio Chassis Inoperative/Does Not Operate Properly:



Radio Chassis Inoperative/Does Not Operate Properly, Continued:



Radio Chassis Inoperative/Does Not Operate Properly, Continued:



Radio Chassis Inoperative/Does Not Operate Properly, Continued:



Radio Chassis Inoperative/Does Not Operate Properly, Continued:



Radio Chassis Inoperative/Does Not Operate Properly, Continued:
