Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> High Speed Shake Diagnosis

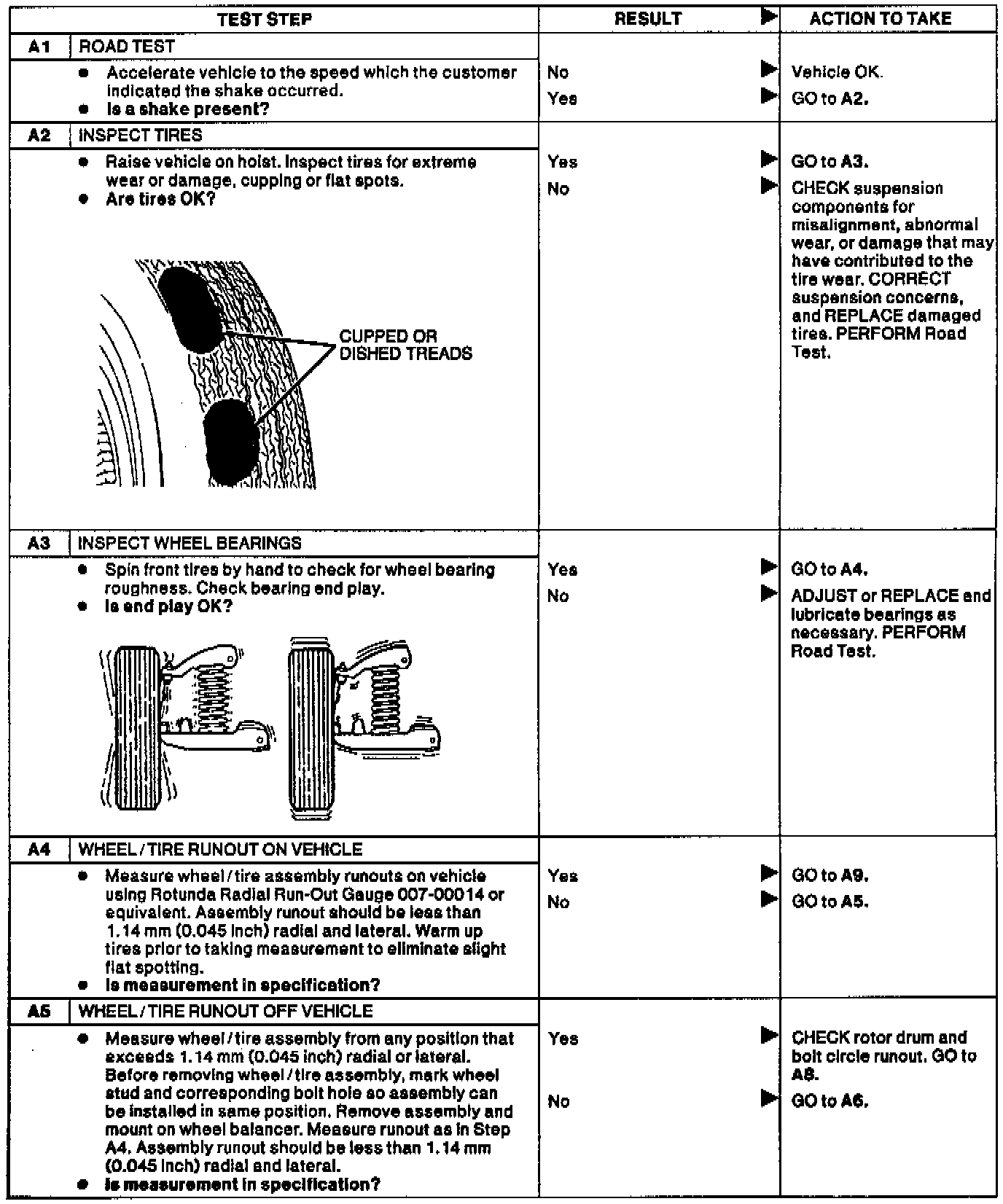

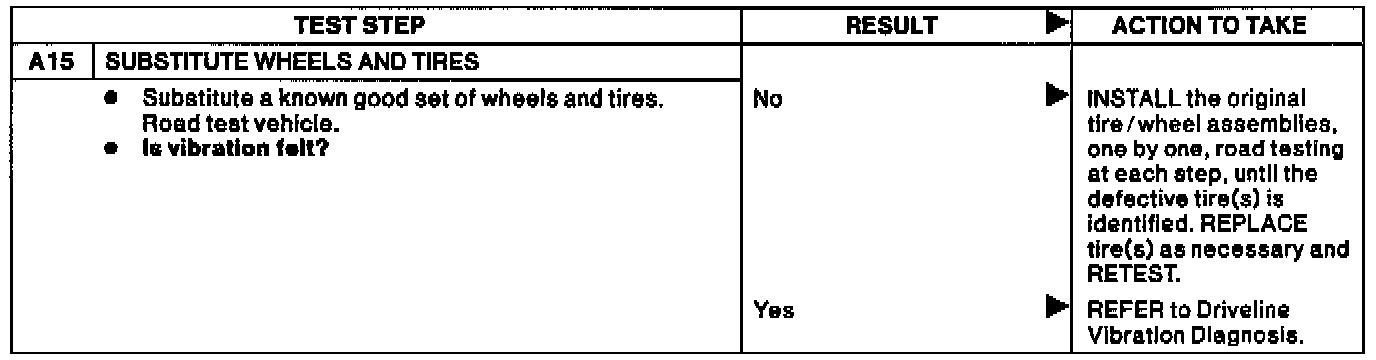

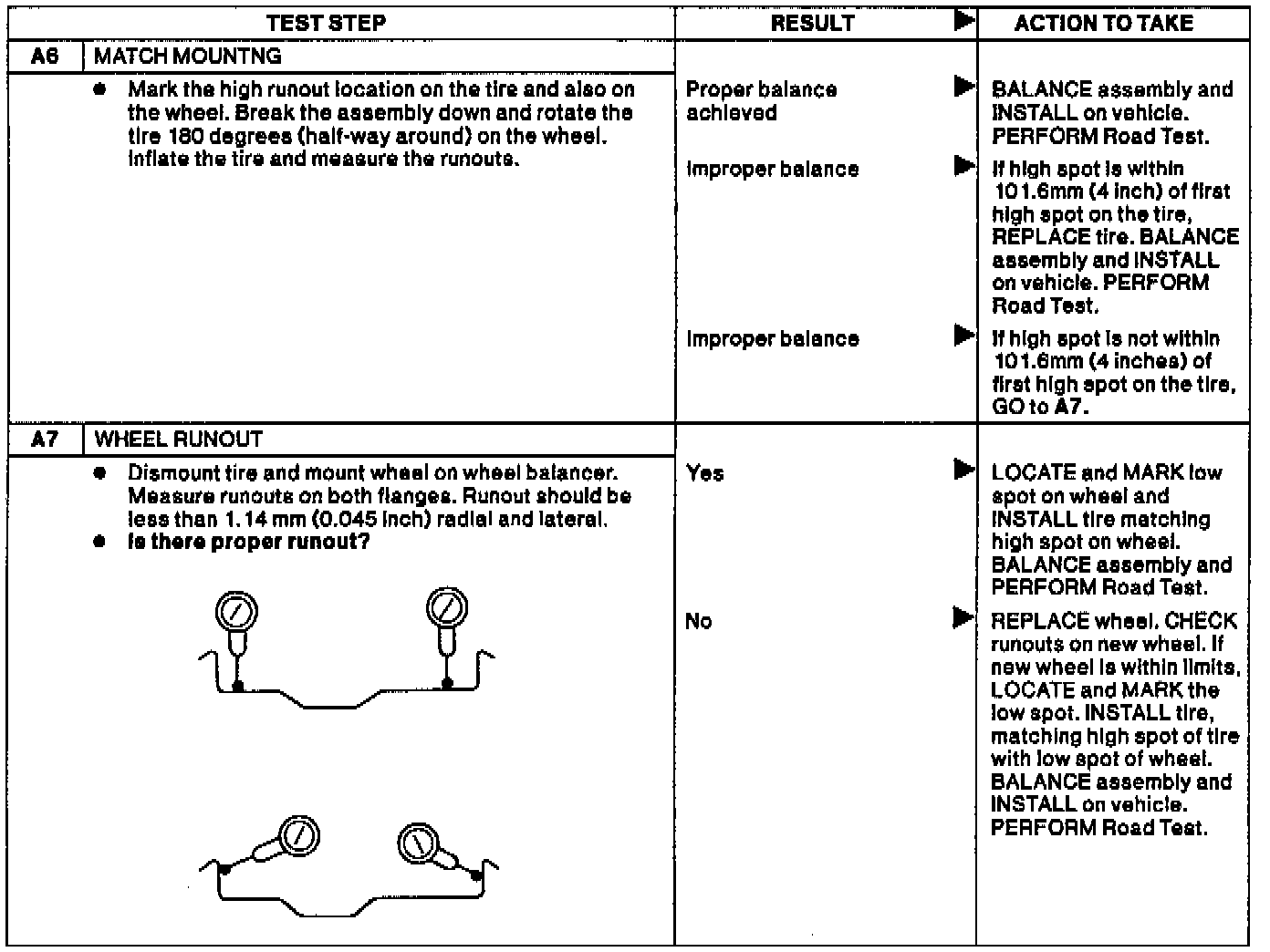

High Speed Shake Diagnosis

High Speed Shake Diagnosis:



High Speed Shake Diagnosis:



High Speed Shake Diagnosis:



High Speed Shake Diagnosis:
