Upper

Upper Shaft Bearing

Column Removed

Removal

1 Remove lock housing from steering column assembly as outlined.

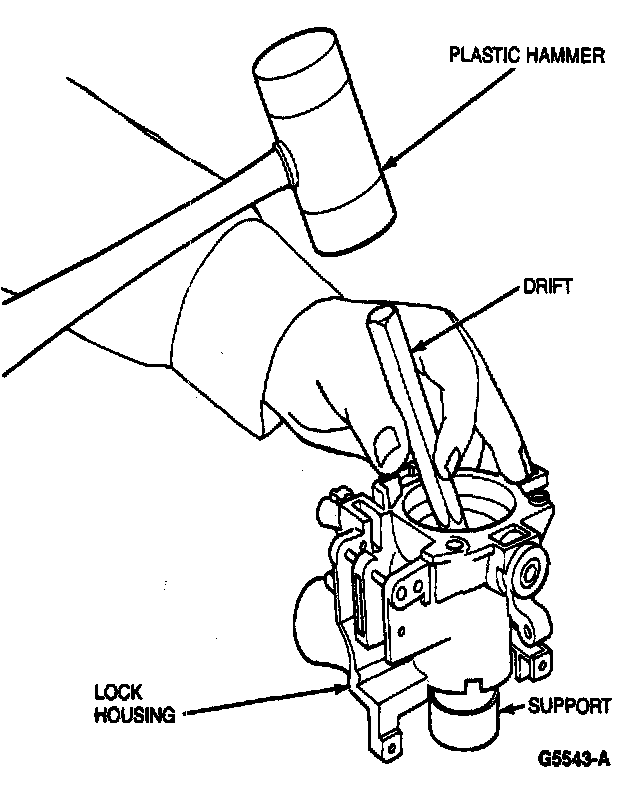

2. Suitably support housing and tap out small bearing with an appropriate drift and a plastic hammer.






Installation

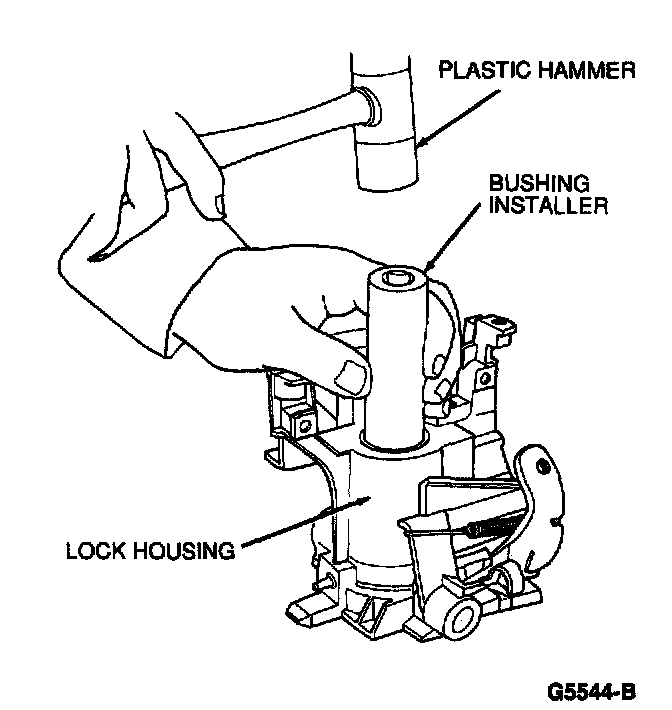

1. Suitably support housing. Position small bearing so that the opening between races is "up." Tap into place with a plastic hammer and a bushing driver installer or socket the same size as outer race of bearing.

2. Install housing on steering column as outlined.
