Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Interior Fuses >> Fuse 4 >> Police and Base Models

Police and Base Models

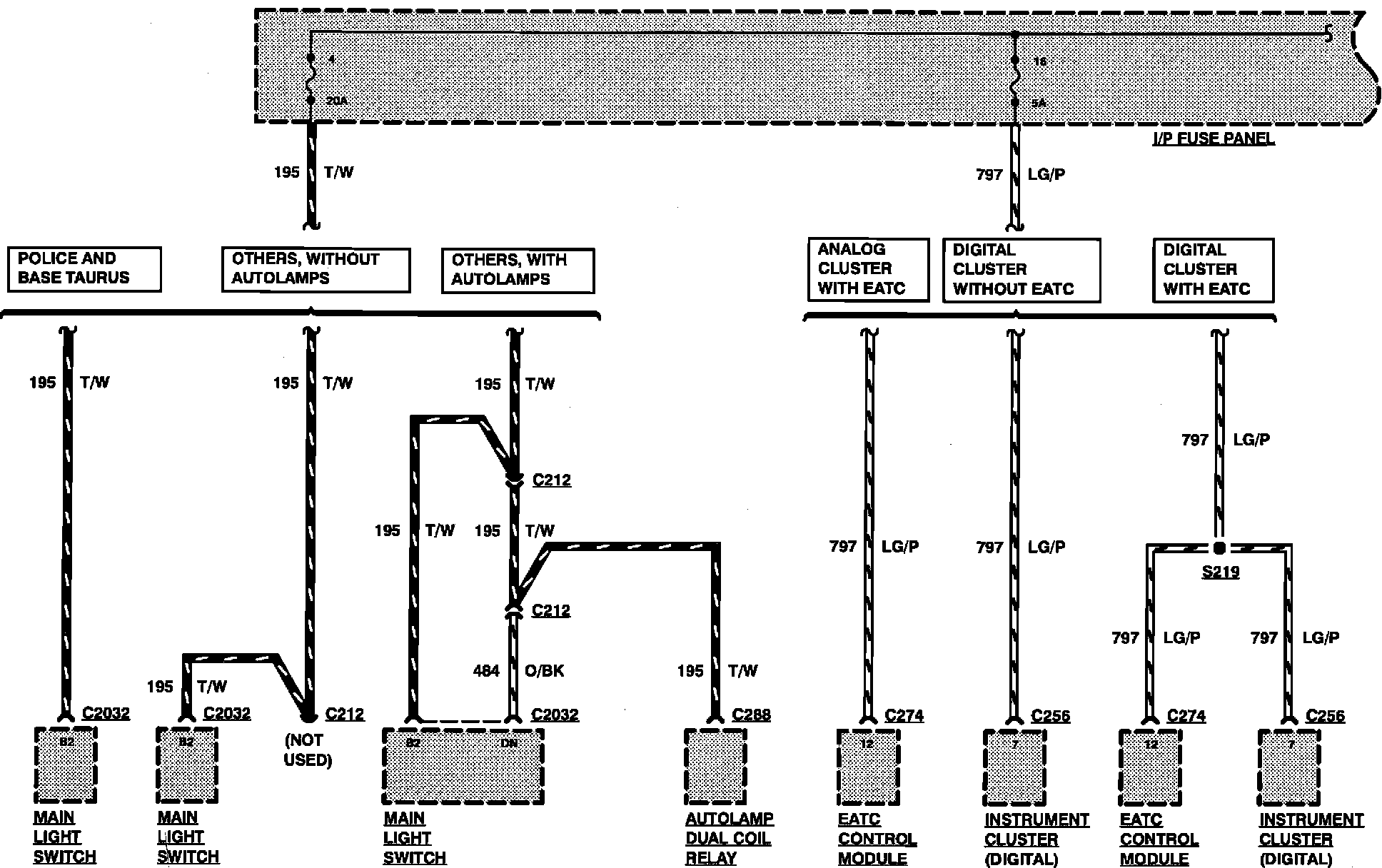

Power Distribution:



Power Distribution:
