Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Engine Compartment Fuses >> Fuse 4 - Cooling Fan

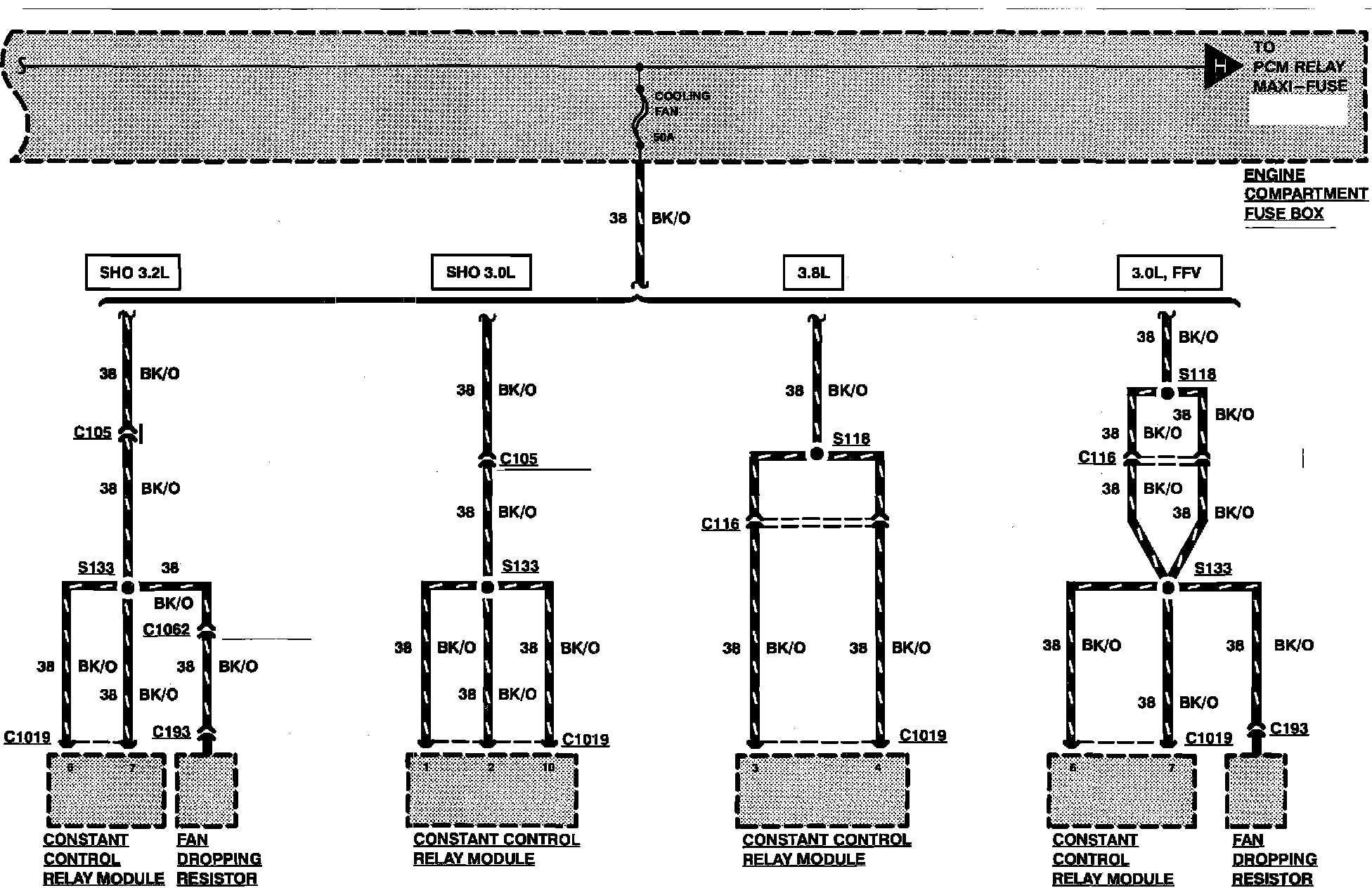

Fuse 4 - Cooling Fan

Power Distribution:
