Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Grounds >> G103 >> Analog Cluster >> Less Police Package >> Part 2 of 4

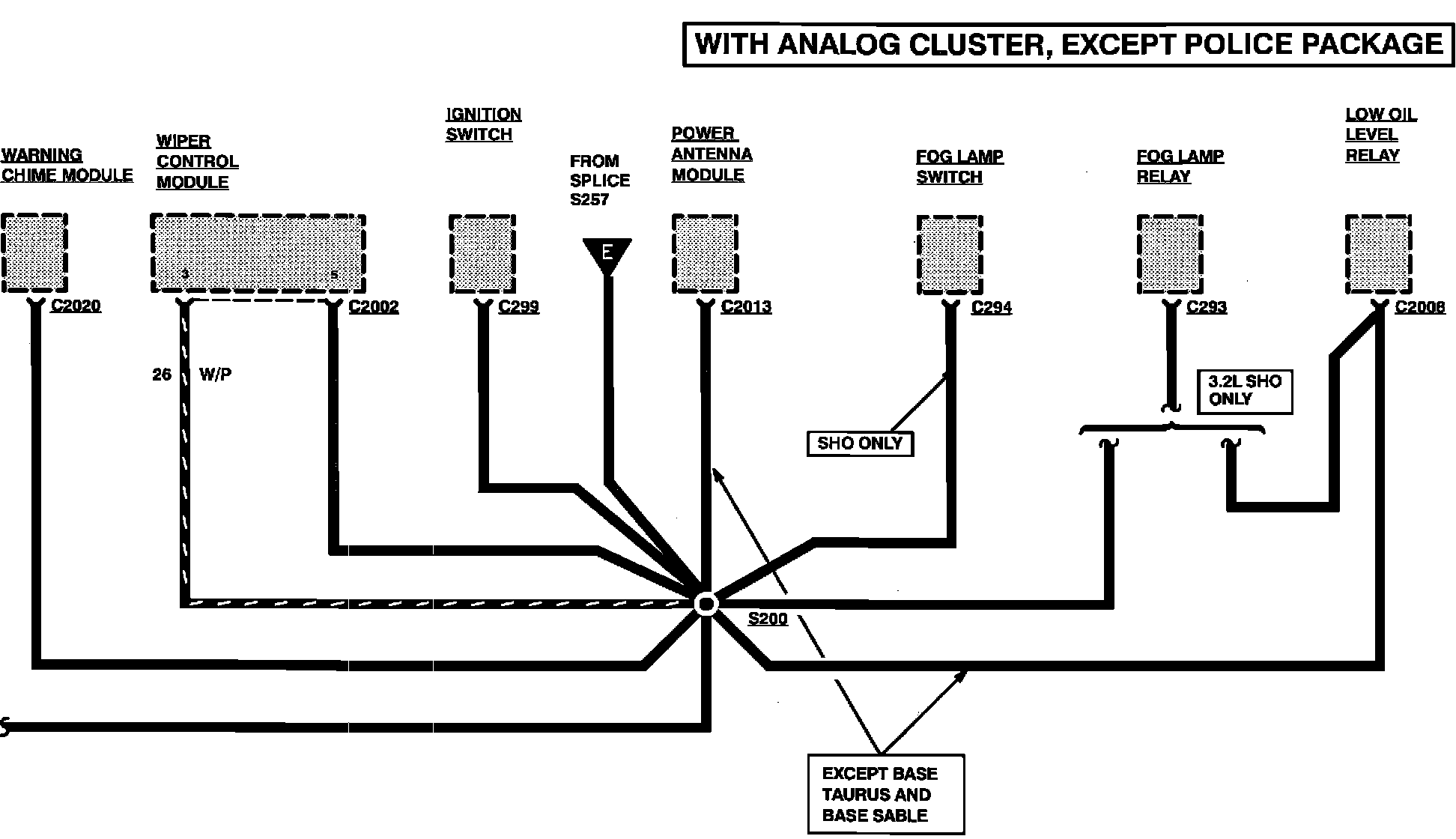

Part 2 of 4

Grounds:
