Center Radiator Sensor

Removal

NOTE: To service stripped sensor retaining screw at center mounted sensor, use screw . Tighten to 13-17 N.m (10-12 lb-ft).

1. Disconnect battery positive cable.
2. Remove sight shield.






3. Disconnect center front sensor electrical connector.
4. Remove four screws retaining center front sensor to radiator support. Remove sensor from vehicle.

Installation

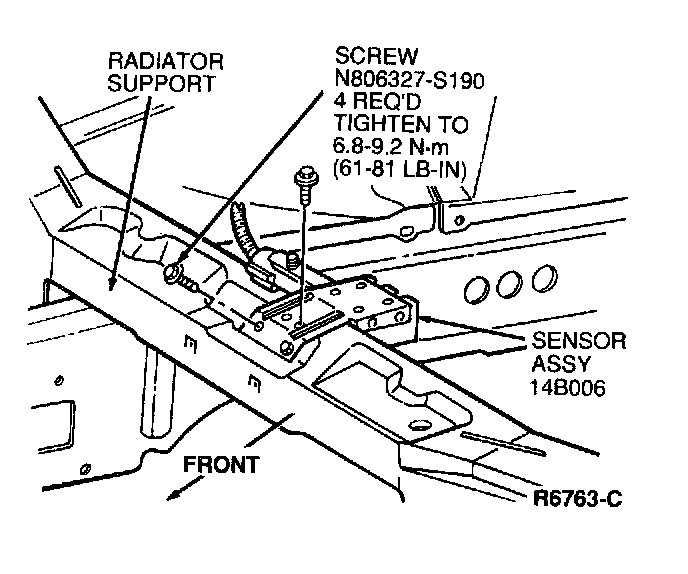

1. Position front center sensor with arrow on top pointing toward front of vehicle and secure to radiator support with four screws. Tighten screws to 6.8-9.2 N.m (61-81 lb-in).
2. Connect front center sensor wire lead connector to wiring assembly connector.
3. Install sight shield.
4. Connect battery positive cable.
5. Verify air bag indicator.
