Sable

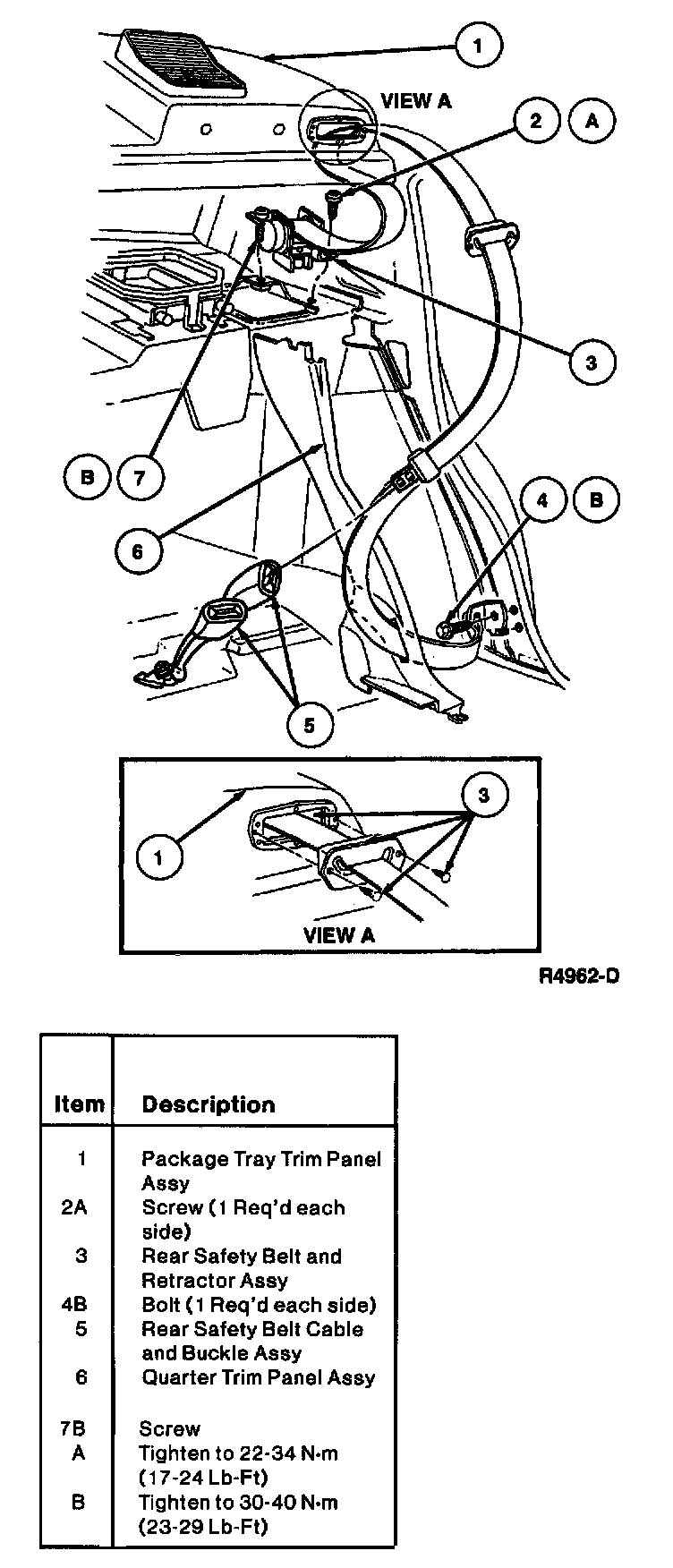

Removal and Installation
1. Remove rear seat cushion.
2. Remove rear seat back. Ensure on vehicles equipped with head restraint, the web guide is opened.
3. Remove buckle end anchor plate nuts and remove buckle end belts.
4. Remove upper and lower quarter trim panels.
5. Remove safety belt anchor plate-to-sill bolt.
6. Snap out bezel in package tray trim panel.
7. Remove rear stoplamp assembly.
8. Remove package tray trim panel.
9. Remove retractor anchor bolt and retractor screw.
10. Remove anchor plate end of belt through the opening in the quarter trim panel and the package tray trim panel.
11. Remove outboard safety belt assembly from the vehicle.
12. Repeat procedure on opposite side.
13. To install, reverse removal procedure. Cycle retractor to check for proper operation. Ensure safety belt is not twisted.

NOTE: Be sure to tighten all retaining bolts.
