System Deactivation Procedures
Deactivation Procedure1. Disconnect battery positive cable.
2. Remove four nut and washer assemblies retaining driver air bag to steering wheel.
3. Disconnect driver air bag connector.

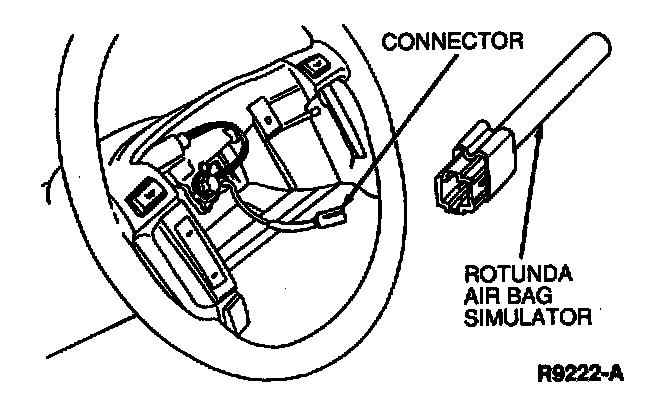

4. Attach Rotunda Air Bag Simulator 105-00010 or equivalent on clockspring to simulate the air bag.
5. If the vehicle is equipped with a passenger side air bag, remove the passenger side air bag. After disconnecting the air bag connector, connect Rotunda Air Bag Simulator 105-00010 to the wiring harness.
6. Connect positive battery cable.
