Test Notes and Schematic

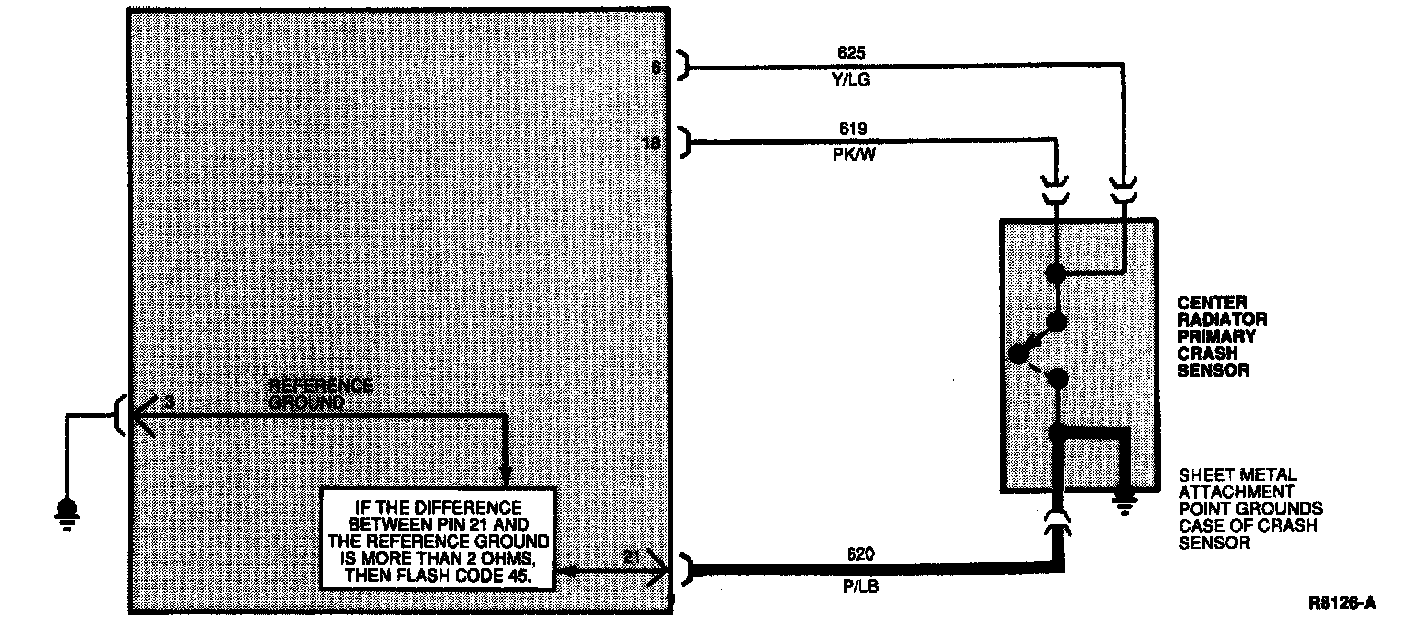

Electrical Schematic - Diagnostic Trouble Code 45


Normal Operation
The diagnostic monitor measures the resistance between Pin 21 (Circuit 620, P/LB) and Pin 3 (diagnostic monitor reference ground). If the diagnostic monitor measures a difference of more than 2.0 ohms between Pin 21 and Pin 3, it will flash out code 45.

Note that Circuit 620 (P/LB) is grounded to the side of the center radiator primary crash sensor case and the case is grounded to the vehicle at its mounting point.

Possible Causes
High resistance on Pin 21 (Circuit 620 P/LB) to ground can be caused by:
1. A poor connection due to loose mounting, dirt, or corrosion at the center radiator primary crash sensor mounting location.
2. An open or damaged wire in Circuit 620 (P/LB) from Pin 21 of the diagnostic monitor harness connector to center radiator primary crash sensor.
3. An open circuit inside the center radiator primary crash sensor.
