Steering Control Module: Locations

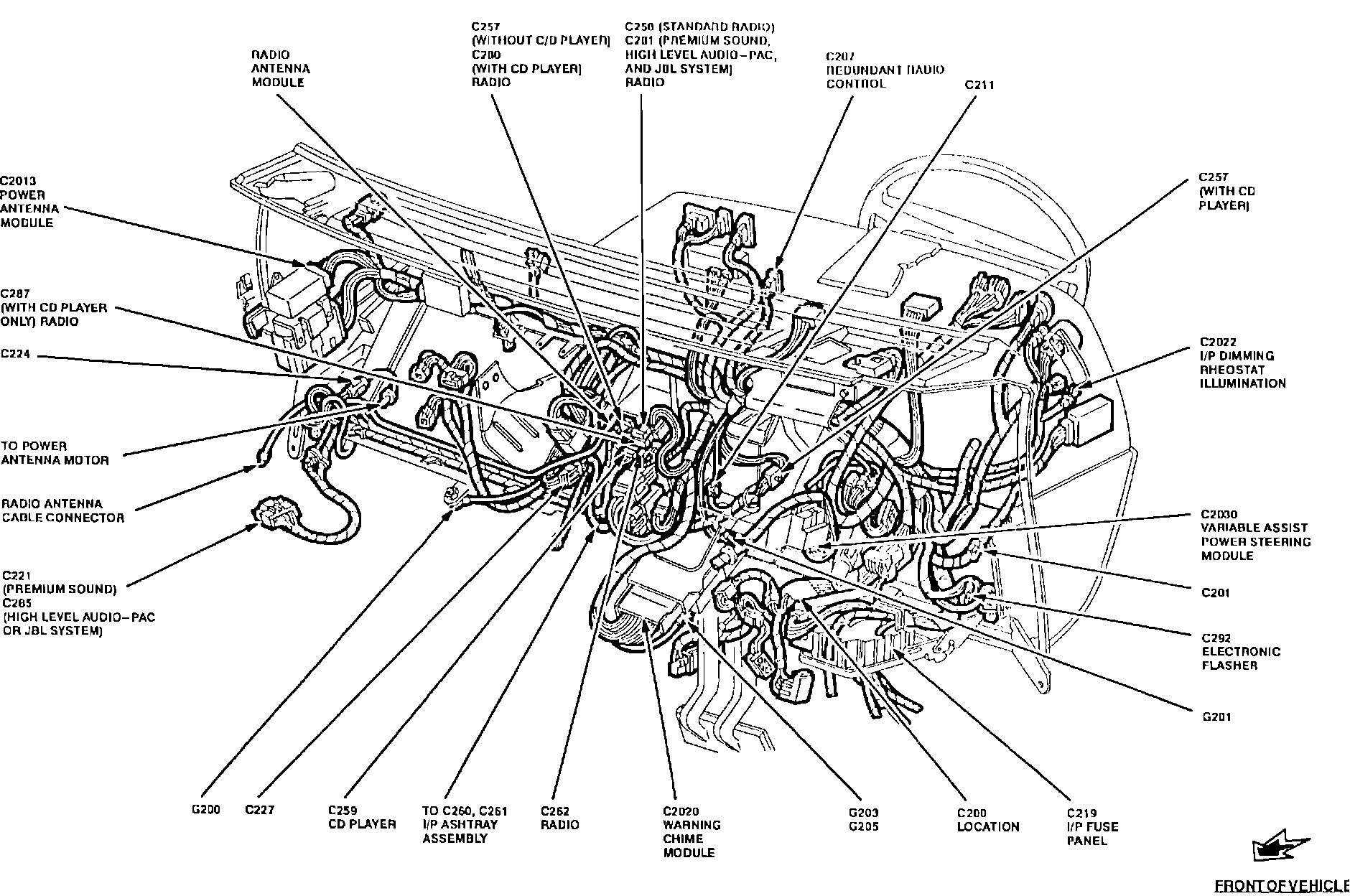

Component Locations:

VARIABLE ASSIST POWER STEERING (VAPS) MODULE LOCATION

Behind the LH side of the instrument panel, to the RH side of the steering column.
