Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Thermostatic Air Cleaner >> Testing and Inspection >> Pinpoint Tests >> AIS 12 - Check For Vacuum at IMRC Actuator Inlet Port

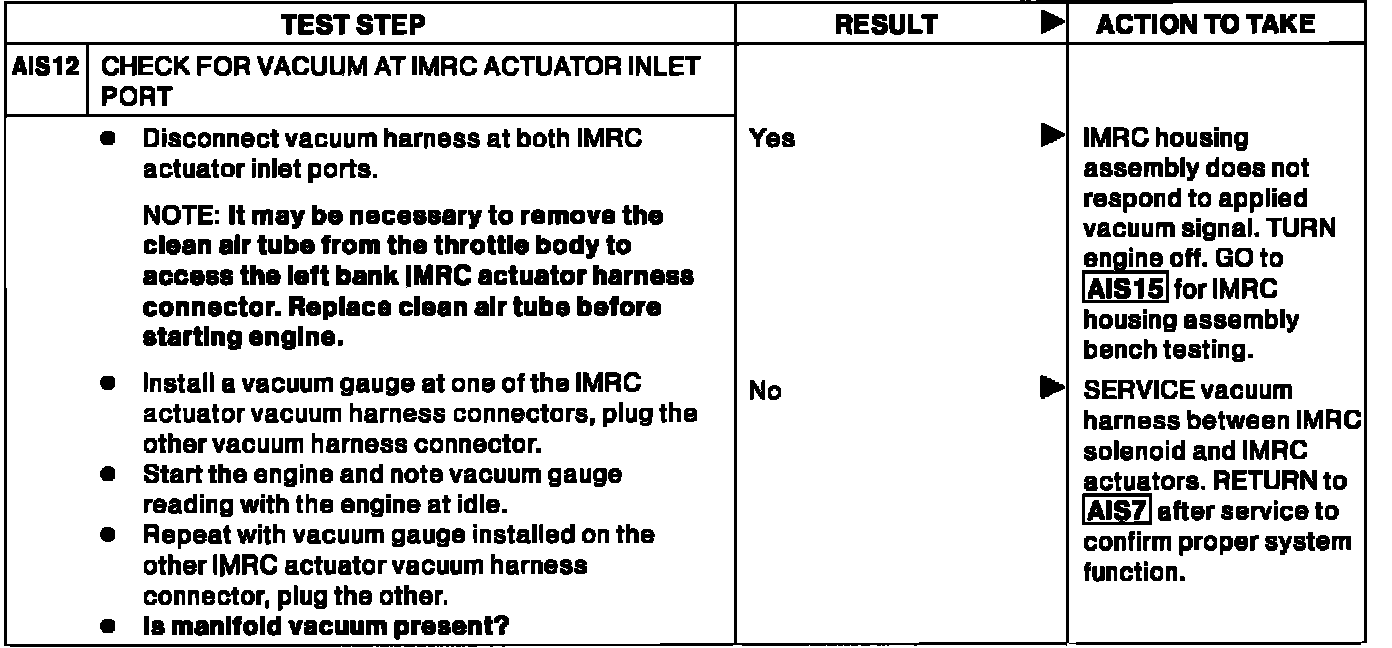

AIS 12 - Check For Vacuum at IMRC Actuator Inlet Port

AIS12 - Check For Vacuum At IMRC Actuator Inlet Port:
