Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> Testing and Inspection >> Pinpoint Tests >> EGR 2 - Check EGR Vacuum at Idle

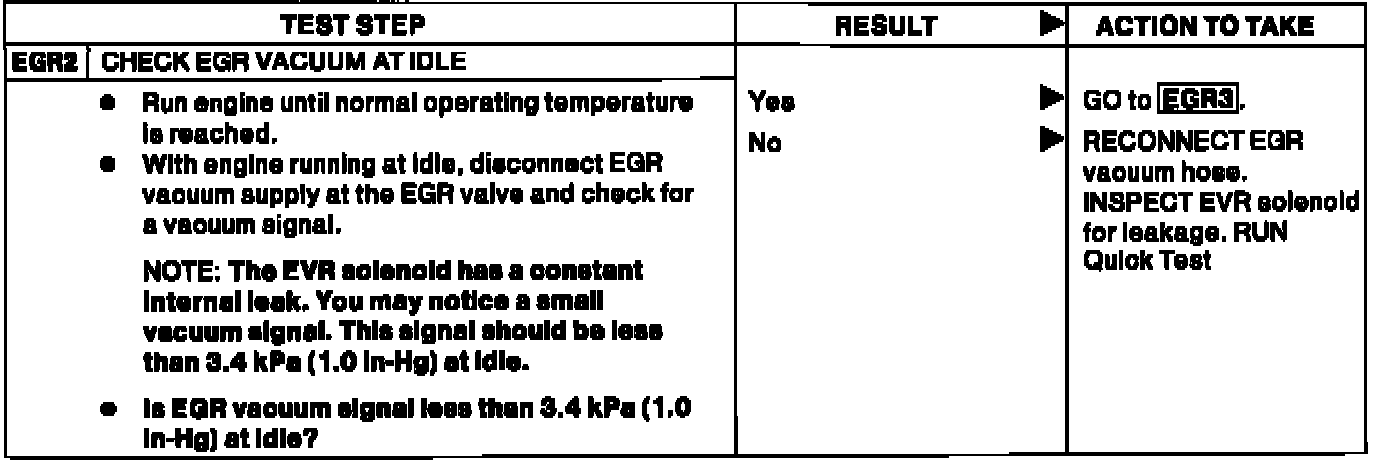

EGR 2 - Check EGR Vacuum at Idle

EGR2 - Check EGR Vacuum At Idle:
