Evaporative Emissions System: Locations
GASOLINE

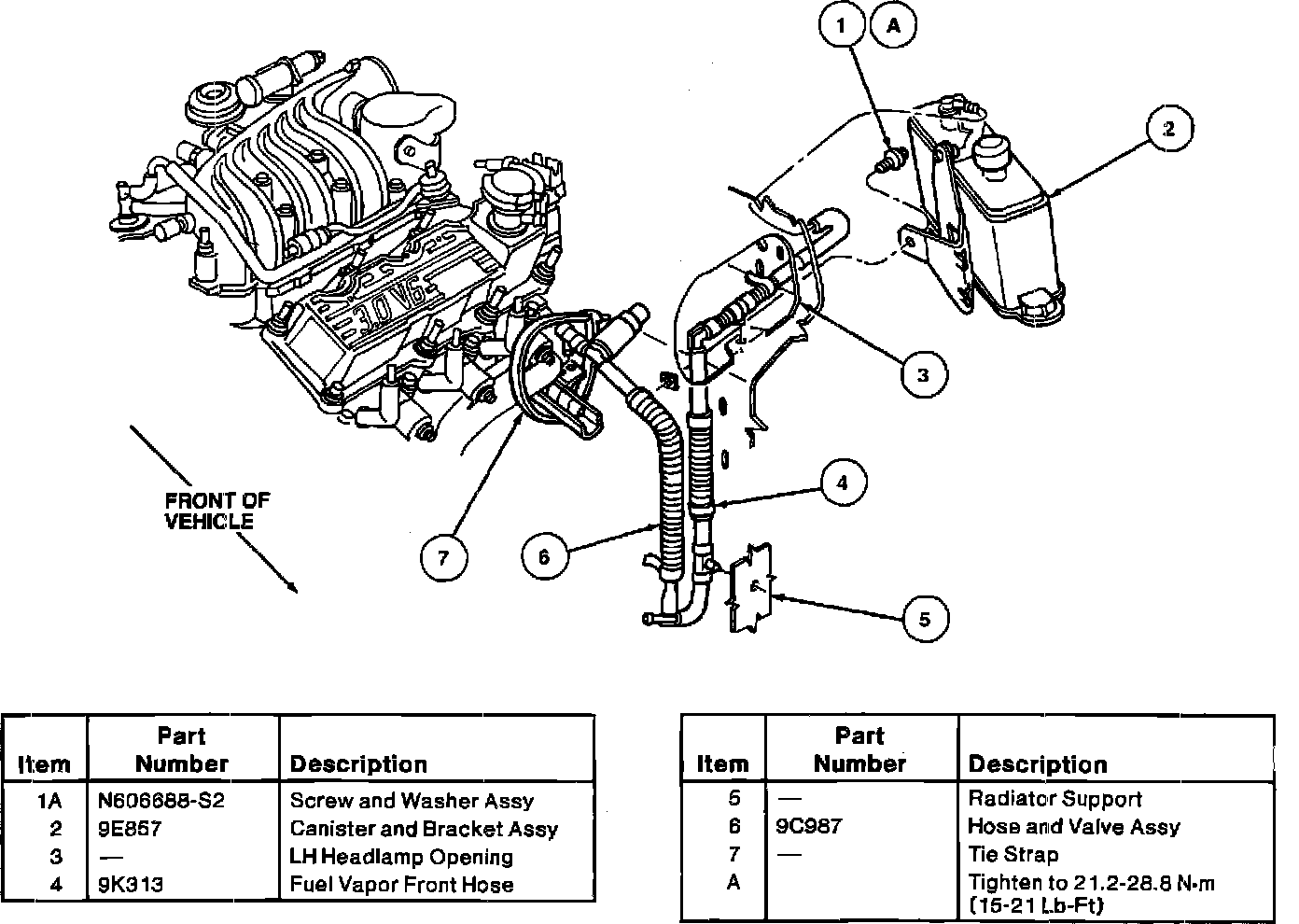

Evaporative Emission System (Unleaded Gasoline Only):
FLEXIBLE FUEL

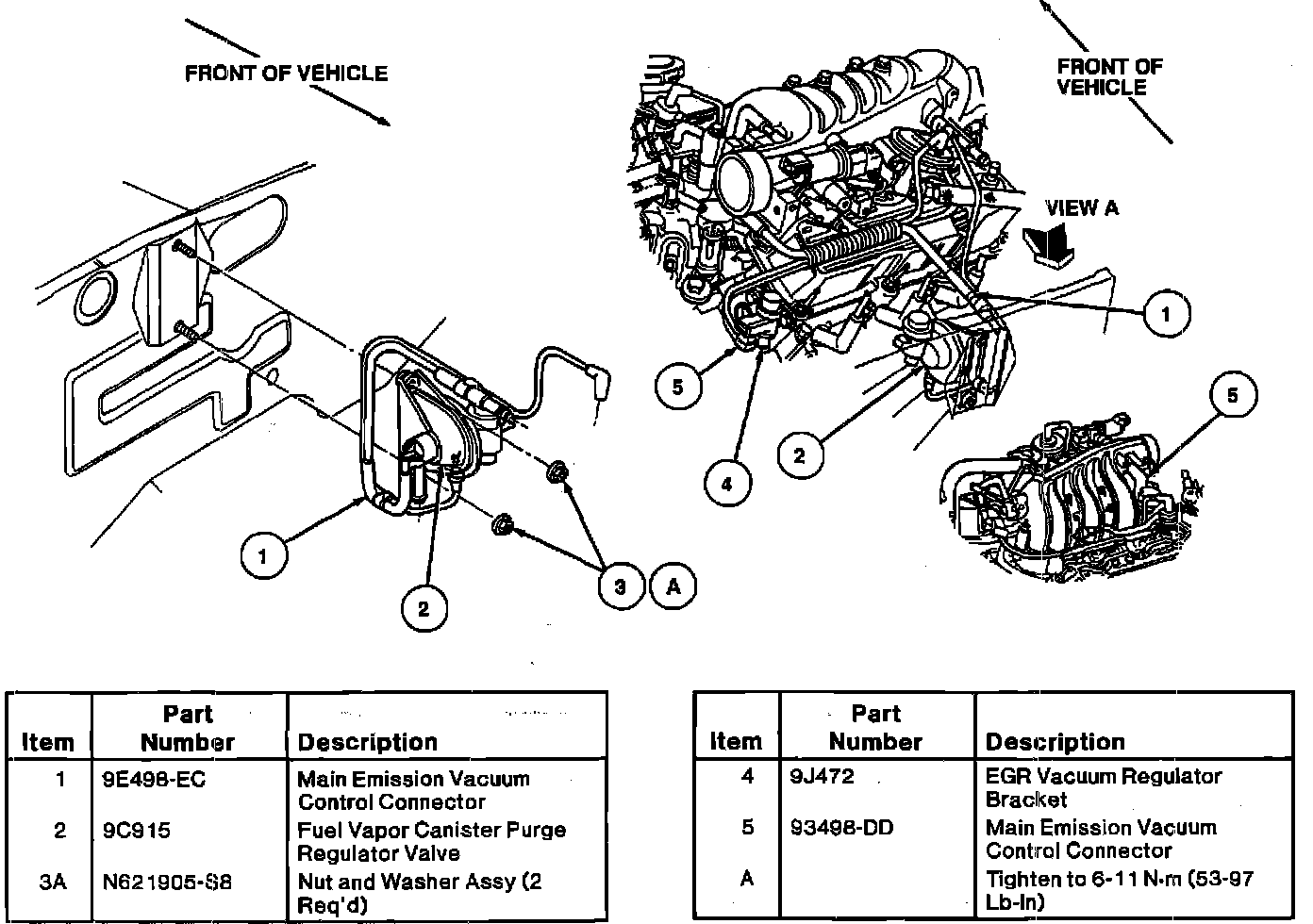

Evaporative Emission System (Flexible Fuel Vehicle):
