Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> Secondary Air Injection Functional Diagnosis >> AIR34 - Verify Check Valve's Ability to Hold Vacuum

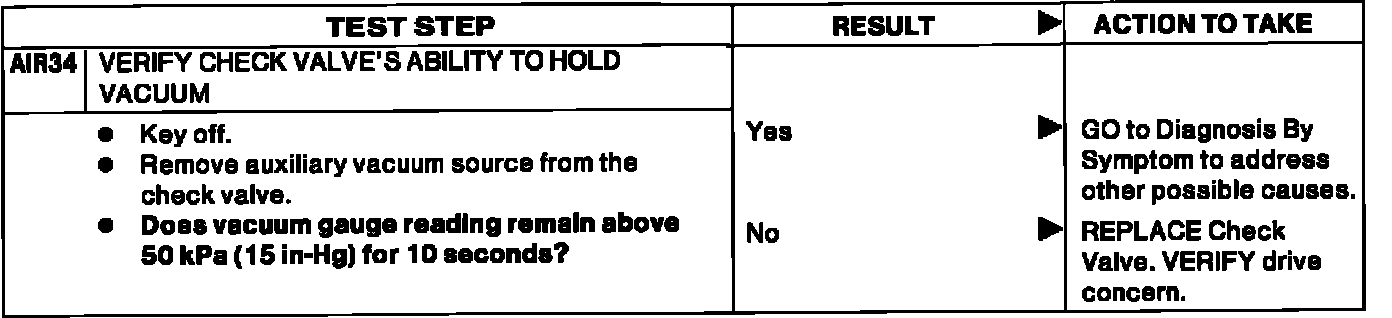

AIR34 - Verify Check Valve's Ability to Hold Vacuum

AIR34 - Verify Check Valve's Ability To Hold Vacuum:
