Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Testing and Inspection >> Secondary Air Injection Functional Diagnosis >> AIR32 - Check Vacuum Reservoir Function

AIR32 - Check Vacuum Reservoir Function

AIR32 - Check Vacuum Reservoir Function:

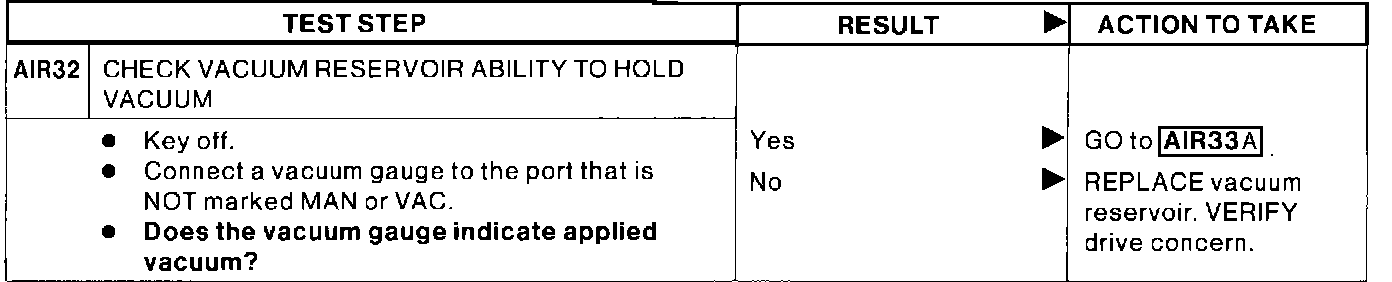

AIR 32 Check Vacuum Reservoir Ability To Hold Vacuum:
