AIR17 - Check For Air at Outlet A

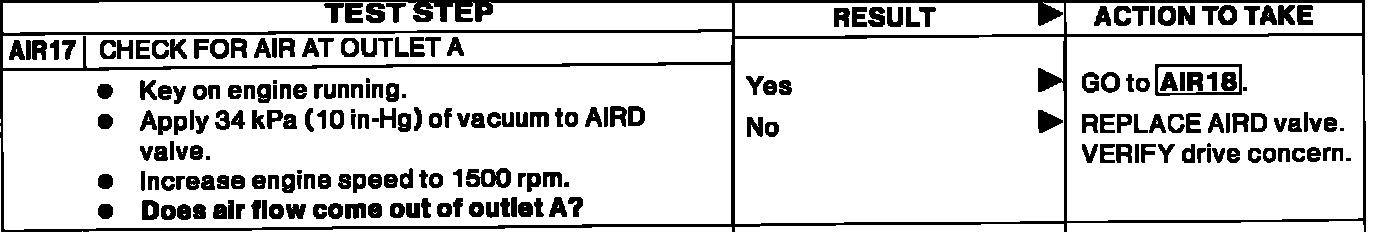

AIR17 - Check For Air At Outlet A:



Air Control Valve (Thermactor Bypass Valve):
