FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1993
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Intermittent Fault Diagnosis
>>
Vehicle Preparation and Testing
Vehicle Preparation and Testing
Visual Inspection, Vehicle Preparation, & Equipment Setup:

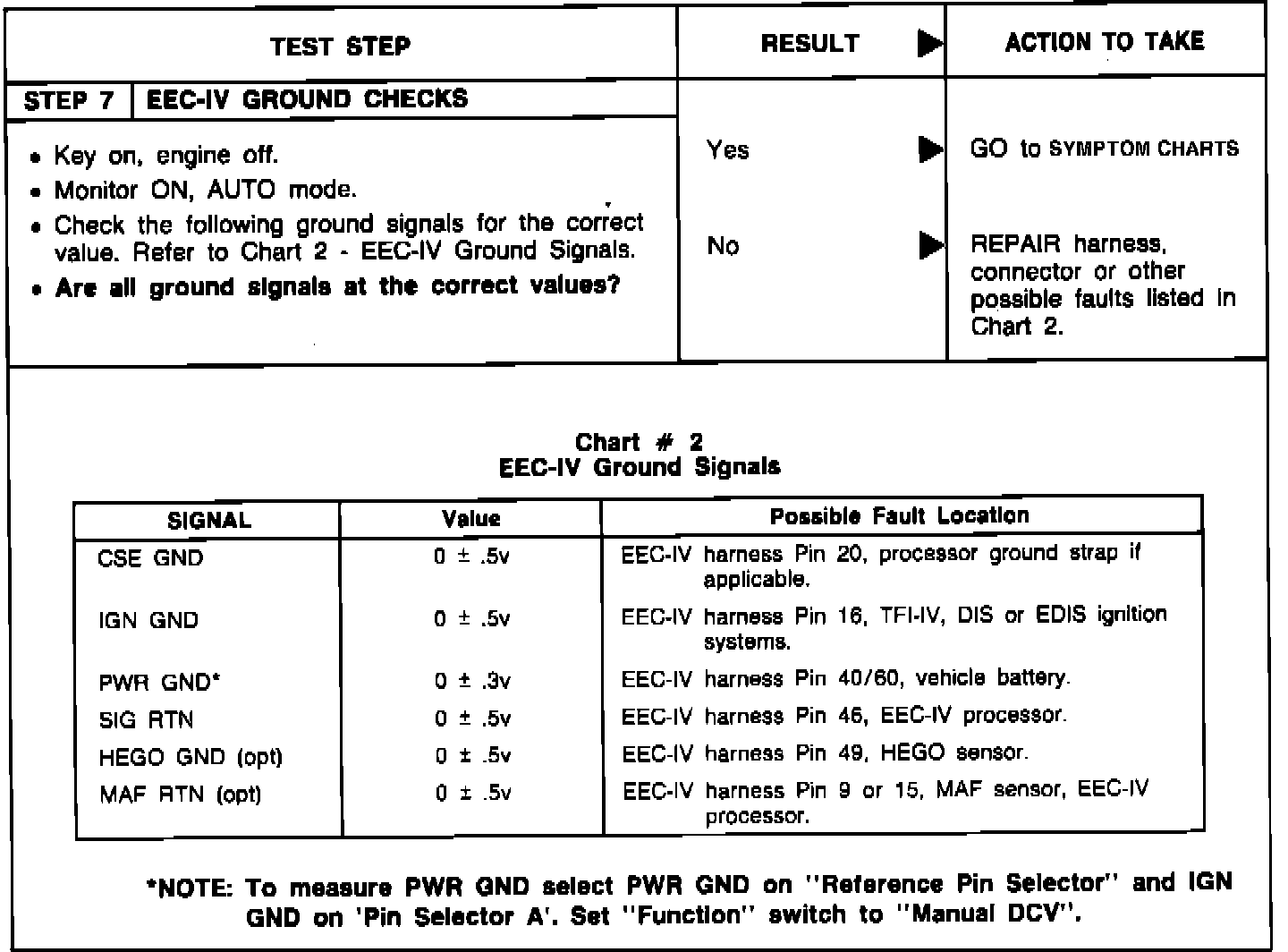

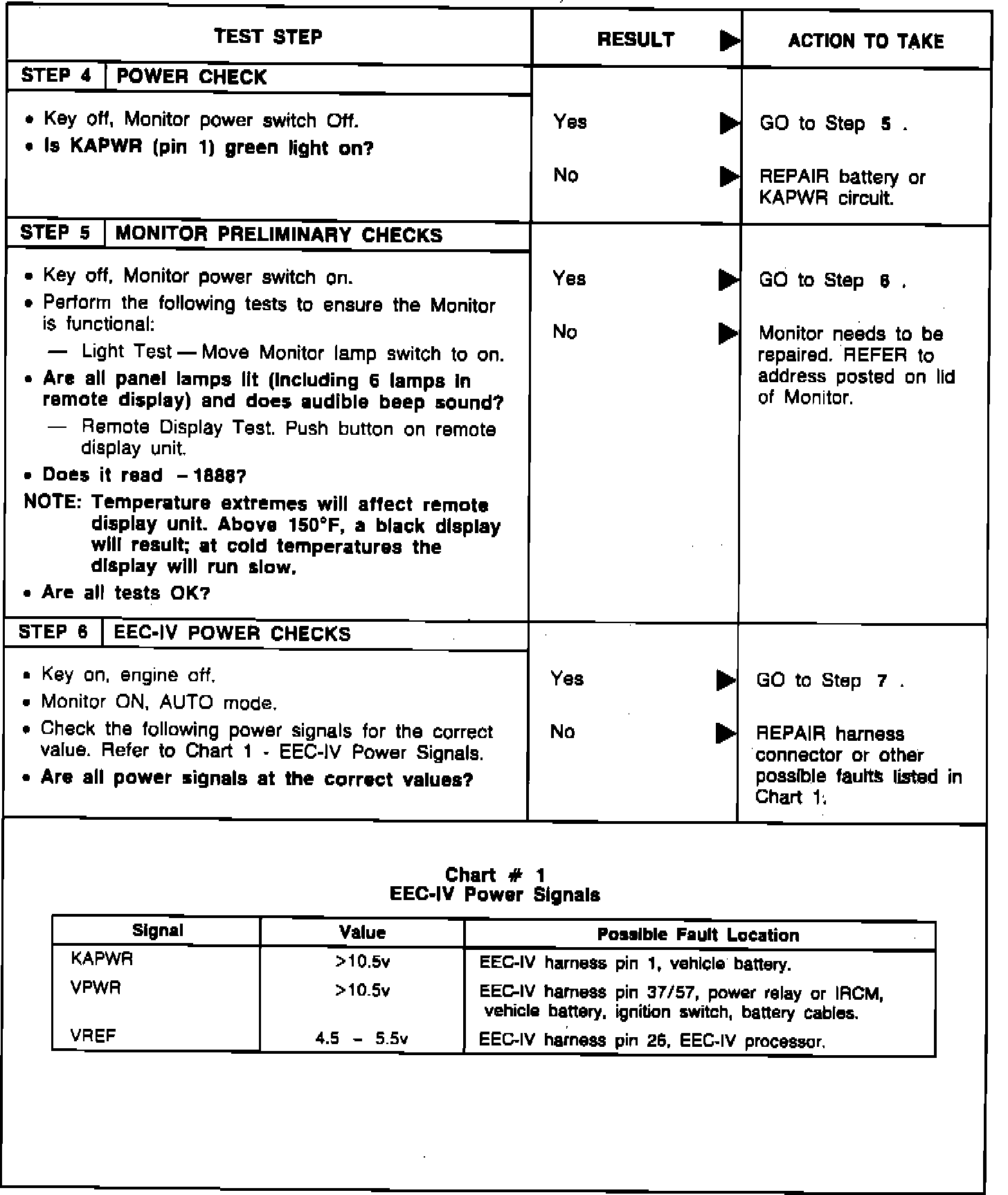

Monitor And EEC-IV Power And Ground Check:
Monitor And EEC-IV Power And Ground Check:
