Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> 4 - No Start/Normal Crank

4 - No Start/Normal Crank

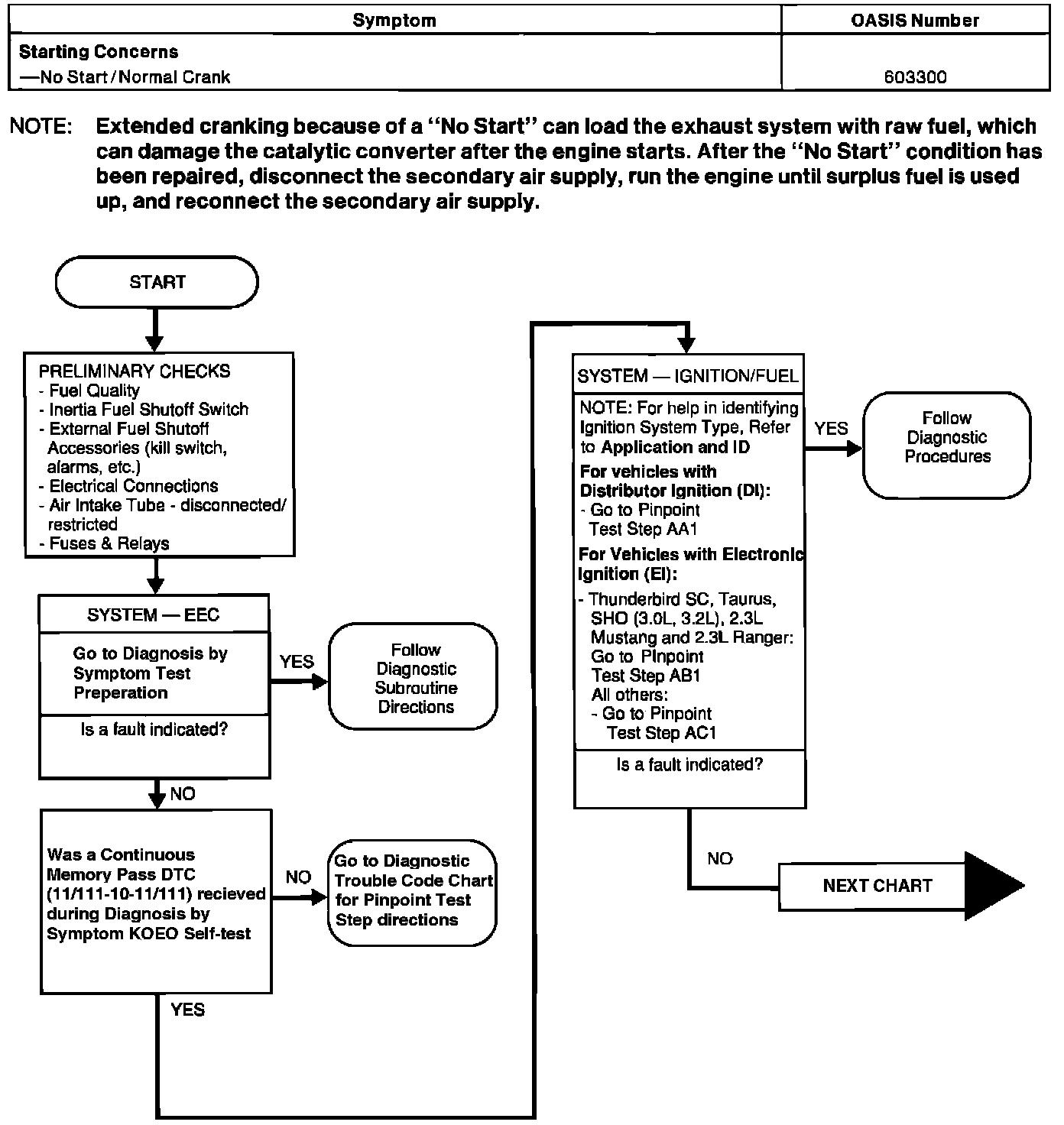

Diagnosis By Symptom Flow Chart:



Chart 4 (Part 2 of 2):
