29 - Lack of Air Conditioning (A/C Not Functioning)
29 - Lack of Air Conditioning (A/C Not Functioning)

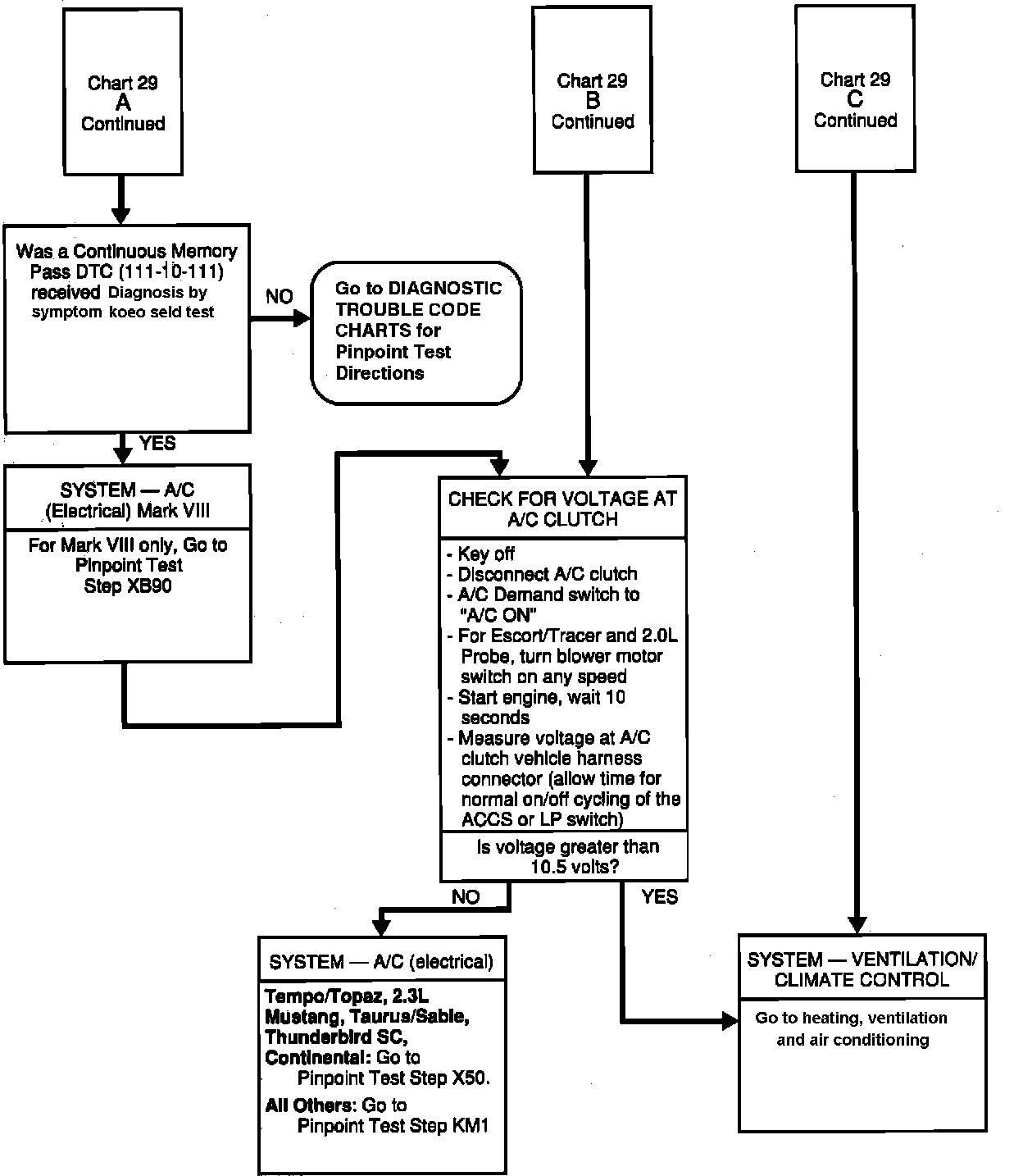

Chart 29 (Part 1 of 3):
Diagnosis By Symptom Flow Chart:
