Home >> Mercury >> 1993 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> 14 - Spark Knock During Acceleration/Cruise

14 - Spark Knock During Acceleration/Cruise

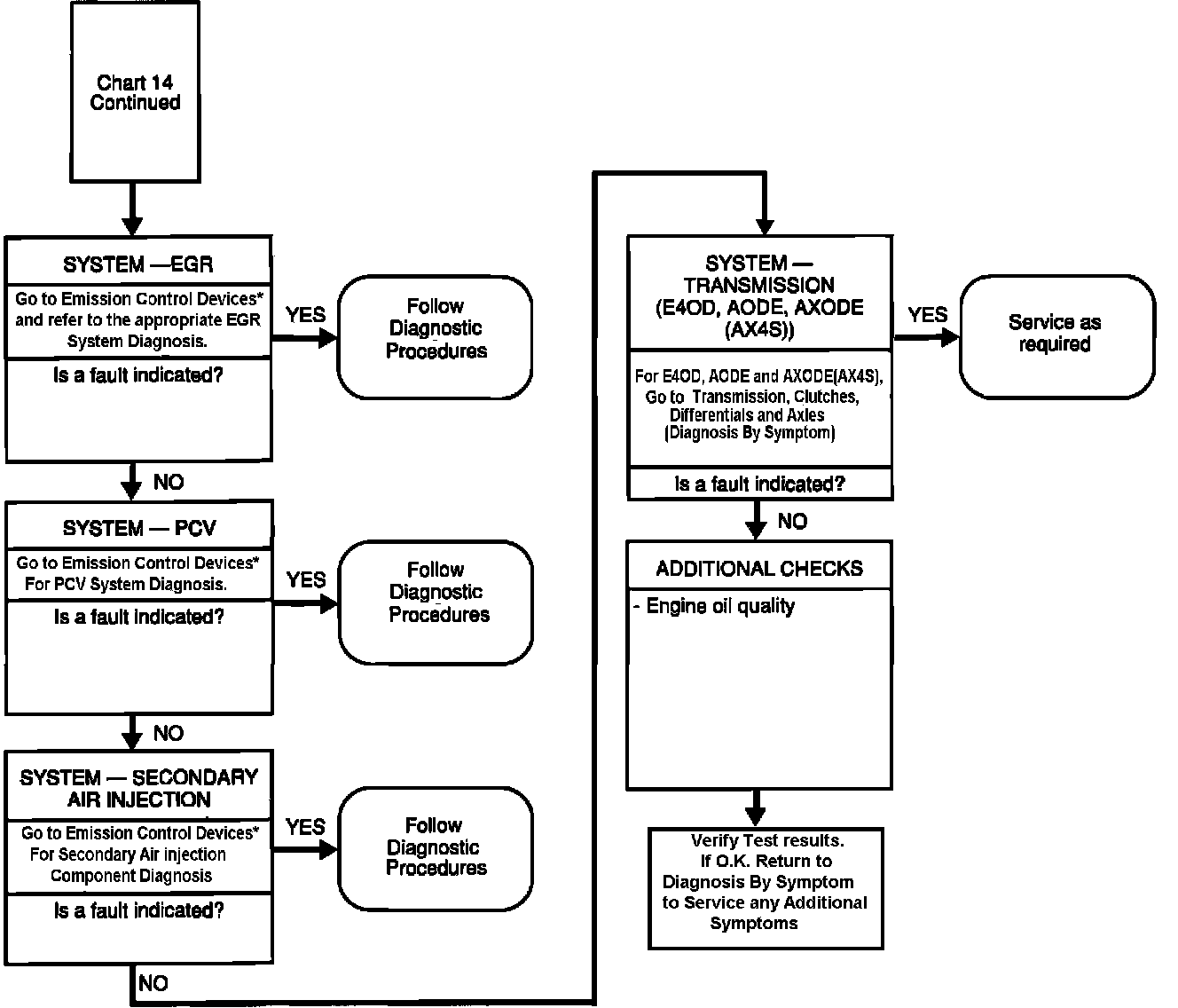

Chart 14 (Part 1 of 2):



Diagnosis By Symptom Flow Chart:
